What is a VOIP STUN server and why is it needed?

A VOIP STUN server helps VoIP devices behind NAT routers discover their public IP address and facilitates NAT traversal, enabling reliable VoIP call setup.

How do I configure a STUN server on my VoIP phone?

Enter the STUN server address (e.g., stun.l.google.com) in the network settings of your VoIP phone. Refer to your device manual for specific steps.

Can a VOIP STUN server solve all NAT-related issues?

No, STUN servers help with most NAT types but may not work with symmetric NAT. In such cases, consider using a TURN server or SBC.

What ports need to be open for STUN server communication?

Typically, UDP and TCP port 3478 should be open to allow STUN traffic.

Is it safe to use public STUN servers for VoIP?

Yes, but for sensitive or high-availability deployments, a private STUN server is recommended for better control and security.

How do STUN, TURN, and ICE protocols work together?

STUN helps discover public IPs, TURN relays media if direct connection fails, and ICE chooses the best path for peer-to-peer communication.

Can I run my own VOIP STUN server?

Yes, you can deploy open source STUN server software like STUNTMAN on your server with proper network configuration.

VOIP STUN Server: The Complete Guide for NAT Traversal and VoIP (2025)

Discover how a VOIP STUN server solves NAT traversal issues in VoIP. This comprehensive guide covers setup, integration, alternatives, and best practices for 2025.

Introduction to VOIP STUN Server

Voice over Internet Protocol (VoIP) technology has transformed communication by enabling voice and video calls over IP networks. However, VoIP faces significant challenges due to Network Address Translation (NAT), a common technique used by routers to allow multiple devices on a local network to share a single public IP address. NAT can disrupt VoIP traffic, causing issues like one-way audio, call failures, and connectivity problems.

NAT traversal is thus critical for VoIP deployments. Without effective NAT traversal, SIP (Session Initiation Protocol) and WebRTC calls may fail to establish peer-to-peer connectivity. This is where the VOIP STUN server becomes essential. A STUN (Session Traversal Utilities for NAT) server helps VoIP clients discover their public IP address and the type of NAT they are behind, paving the way for reliable media streams and successful VoIP connections.

In this comprehensive guide, we explore how a voip stun server works, how to set one up, its integration with popular VoIP systems, and recommended best practices for 2025.

What is a VOIP STUN Server?

A VOIP STUN server is a specialized network service that assists VoIP clients in discovering their public IP address and port as seen from the outside world. This discovery is crucial when devices are located behind a NAT-enabled router. Without a STUN server, SIP endpoints and WebRTC clients may not be able to connect with each other directly, as NAT hides their real IP addresses.

The core function of a voip stun server is to facilitate NAT traversal. When a client, such as a SIP phone or softphone, wishes to establish a call, it sends a STUN binding request to the server using UDP or TCP. The STUN server replies with the public IP and port from which the request originated. This information enables the client to inform its peers of the correct address to use for direct communication.

In the context of VoIP, the voip stun server is critical for ensuring that RTP media streams can traverse the NAT and reach their destination. The STUN protocol is also a building block for advanced standards such as ICE (Interactive Connectivity Establishment) and is often used alongside TURN (Traversal Using Relays around NAT) for more complex scenarios.

STUN Binding Request Example:

1# Example of sending a STUN binding request using Python (pystun3 library)
2import stun
3
4nat_type, external_ip, external_port = stun.get_ip_info()
5print(f"NAT Type: {nat_type}\nExternal IP: {external_ip}\nExternal Port: {external_port}")
6

This code demonstrates how a STUN client interacts with a voip stun server to discover its external network details, which are then used for SIP or WebRTC signaling.

How Does a VOIP STUN Server Work?

A voip stun server operates in a simple client-server model. The process involves a STUN client (such as a VoIP phone) sending a request to the STUN server, which responds with information about the client’s apparent public IP and port. Here’s a step-by-step breakdown:

The VoIP device initiates a STUN binding request to the STUN server, typically over UDP.
The STUN server receives the request and notes the IP address and port from the packet’s source.
The server sends a response containing the observed IP and port.
The client receives this data, identifies the NAT type (full cone, restricted cone, symmetric, etc.), and uses the mapping for peer-to-peer communication.

Types of NAT and Their Impact

Full Cone NAT: Easiest for STUN; all requests from the same internal IP/port are mapped to the same external IP/port.
Restricted/Port-Restricted Cone NAT: More restrictive; only allows external hosts who have received packets from the internal client.
Symmetric NAT: Hardest for STUN; each outgoing request from the same internal IP/port to a different destination is mapped to a different external IP/port.

STUN servers are highly effective for full cone or restricted cone NATs, but less so for symmetric NATs, where TURN servers are often required.

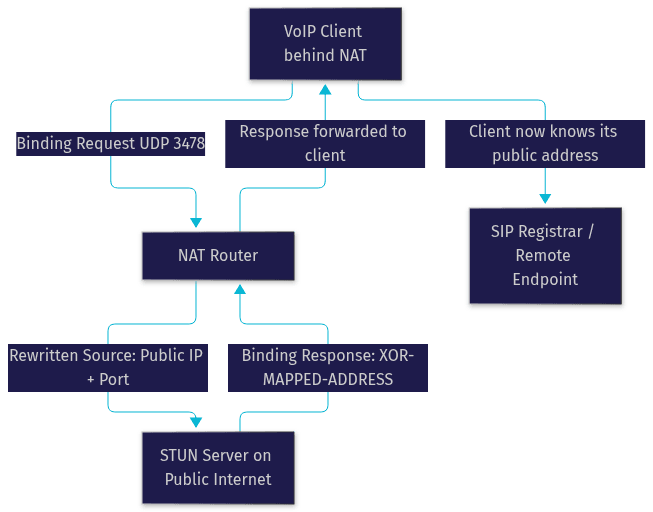

Mermaid Diagram: STUN Request/Response Flow

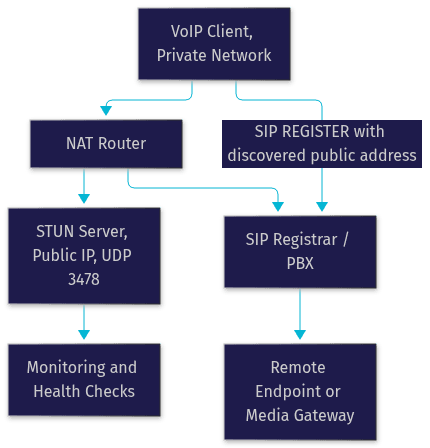

Setting Up a VOIP STUN Server

Requirements and Prerequisites

Network: Publicly reachable server (VPS or bare metal) with a static public IP.
Ports: UDP 3478 is the default for STUN; ensure this is open on your firewall. TCP can also be used for some clients.
Firewall: Allow inbound traffic to the STUN server port(s).
Bandwidth: Minimal, as STUN messages are lightweight.

Open Source STUN Server Options

Several open source voip stun server implementations are well-suited for 2025 deployments:

Stuntman: Lightweight and popular for simple setups.
Coturn: Offers both STUN and TURN functionality for more robust needs.
reTurnServer: Focused on interoperability with SIP and XMPP systems.

Each server supports the standard STUN protocol, making them compatible with most SIP phones, WebRTC endpoints, and softphones.

Basic Configuration Example

Here’s how to start a Stuntman STUN server on UDP port 3478:

1stunserver --mode full --primaryinterface eth0 --primaryport 3478
2

And a basic Coturn config snippet for STUN-only mode:

1listening-port=3478
2fingerprint
3no-auth
4

DNS Records for STUN Servers

For easier client configuration, create both A records pointing to your server’s IP, and SRV records to indicate the service location.

Using a VOIP STUN Server with Popular VoIP Solutions

Integrating with SIP Devices

Most SIP phones and ATAs provide a field for specifying a voip stun server. Here’s how to configure it on popular devices:

Yealink: Navigate to Network > NAT > STUN Settings. Enter the STUN server address and port.
Gigaset: Go to Settings > Telephony > Advanced VoIP Settings. Add the STUN server URL and port.

This enables the device to discover its public IP and establish peer-to-peer RTP streams, reducing audio issues and call setup delays.

STUN with Asterisk/FreePBX

In Asterisk and FreePBX, STUN server information can be set in the SIP or PJSIP settings. Example for pjsip.conf:

1[transport-udp]
2type=transport
3protocol=udp
4bind=0.0.0.0:5060
5stun_server=stun.example.com:3478
6

This allows endpoints registered to Asterisk to leverage the voip stun server for NAT traversal and improved call quality.

STUN and 3CX PBX

3CX supports STUN out-of-the-box. To configure:

Go to Settings > Network > Public IP.
Enter your custom or preferred STUN server.
Save and apply changes.

3CX will now use the specified voip stun server for public IP discovery during SIP registration and media negotiation.

Alternatives and Limitations of VOIP STUN Server

While a voip stun server is highly effective for NAT traversal in many scenarios, it is not a universal solution. In symmetric NAT environments, where each outbound request can result in a different external mapping, STUN alone may fail. Here, a TURN server is necessary, as it can relay media between endpoints.

Session Border Controllers (SBCs) are another alternative, especially in enterprise deployments, providing advanced NAT traversal and security features but at higher cost and complexity.

Security is also a consideration: exposing your voip stun server to the public internet can attract unwanted traffic. Use firewall rules and monitor usage to mitigate risks.

Best Practices for VOIP STUN Server Deployment

Server Location: Deploy your voip stun server close to users geographically to reduce latency.
Redundancy: Run multiple STUN servers in different regions and use DNS SRV records for failover.
Monitoring: Continuously monitor server health and traffic to ensure availability and spot anomalies.
High Availability: Use load balancers and regular backups for critical environments.
Security: Restrict access where possible, harden your OS, and keep software up-to-date.

Adhering to these practices helps ensure seamless VoIP experiences in 2025 and beyond.

Conclusion

A voip stun server remains a critical component for NAT traversal in modern VoIP deployments. It enables SIP, WebRTC, and other real-time protocols to work reliably across complex network boundaries. While limitations exist—especially in symmetric NAT scenarios—STUN, when combined with TURN or SBCs, offers a robust foundation for remote and distributed VoIP systems. For further reading, consult the latest documentation for your chosen VoIP platform and open source STUN solutions.
