Introduction to Call Trunk
In the rapidly evolving landscape of modern telecommunications, the term call trunk stands as a cornerstone concept. A call trunk refers to a dedicated communication path that connects two switching systems, enabling multiple simultaneous calls to travel over a shared medium. Trunking is vital for efficient, scalable, and cost-effective voice and data transmission across both traditional and IP-based networks. As organizations move towards cloud-based solutions and global connectivity, understanding call trunks, their types, and their strategic role in telephony and contact centers has never been more important.
What is a Call Trunk?
A call trunk is a high-capacity communication channel that interconnects telephone exchanges or devices, allowing many calls to be carried simultaneously. Unlike a direct line, which connects only two endpoints, a trunk line aggregates traffic, optimizing resource usage and minimizing infrastructure costs.
Historically, the term "trunk call" originated when calls between different cities or regions required routing through a central exchange, often incurring higher charges than local calls (toll vs. trunk). Trunk lines made this possible by enabling batch processing of calls, a precursor to today's global connectivity.

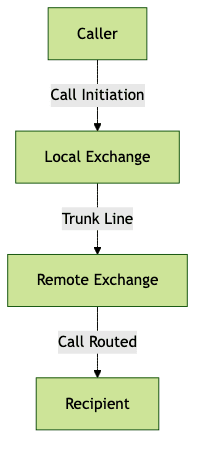

Basic Trunk Call Routing (Mermaid Diagram)
This diagram illustrates how a call is routed from a caller, through a local exchange, over a trunk line to a remote exchange, and finally to the recipient.
How Call Trunks Work in Telephony
Trunking in telecommunications is the art and science of efficiently sharing limited communication resources among a large number of users. Instead of dedicating a line to every single user, trunking allows multiple conversations or data streams to share a single trunk channel, maximizing efficiency.
Multiplexing: TDM and FDM
Two fundamental techniques underpin trunking:
- Time Division Multiplexing (TDM): Divides a single channel into time slots for each call.
- Frequency Division Multiplexing (FDM): Allocates a unique frequency band within the channel for each call.
By leveraging multiplexing, telephone exchanges can dramatically increase the number of calls handled without a proportional increase in physical infrastructure.
Call Routing through Trunks
Calls originating from subscribers are routed via local exchanges. The exchange aggregates outgoing calls and forwards them to other exchanges or networks through trunk lines. Modern systems rely on intelligent call routing protocols like SIP, which optimize trunk utilization and call quality.
Example SIP Trunk Configuration (YAML)
1sip_trunk:
2 provider: "voip-provider.com"
3 username: "trunk_user"
4 password: "P@ssw0rd!"
5 server: "sip.voip-provider.com"
6 outbound_proxy: "proxy.voip-provider.com:5060"
7 codecs:
8 - "G.711"
9 - "G.729"
10 channels: 30
11 registration: true
12 caller_id: "+1234567890"
13This configuration snippet demonstrates a typical SIP trunk setup for VoIP telephony, specifying provider details, authentication, supported codecs, channel capacity, and caller ID.
Types of Call Trunks
Trunking technology has evolved significantly. There are three main types of call trunks in use today:
Analog Trunks
Analog trunks transmit voice using electrical signals over copper wires. Historically, these were the backbone of telephony but are limited in channel capacity and susceptible to noise. They are still used in some legacy systems and rural settings.
Digital Trunks
Digital trunks, such as T1, E1, and ISDN PRI, convert voice into digital signals for transmission. They offer better quality, higher channel density (e.g., 24 channels for T1, 30 for E1), and improved reliability. Digital trunks became the standard for enterprise and carrier networks in the late 20th century.
SIP Trunks (VoIP)
SIP trunks leverage the Session Initiation Protocol (SIP) to transmit voice and multimedia over IP networks. They enable scalable, cost-effective, and geographically flexible solutions, supporting voice, video, and messaging over the same connection. The migration from analog/digital to SIP trunks is accelerating with the adoption of cloud telephony and unified communications.
Call Trunking in Contact Centers
Contact centers depend on robust trunking to manage large volumes of inbound and outbound calls. Trunks connect the center's telephony infrastructure to the public switched telephone network (PSTN) or cloud telephony providers.
Trunk Capacity Planning and the Erlang B Formula
Proper trunk capacity planning ensures that the contact center can handle peak call volumes without excessive busy signals or dropped calls. The Erlang B formula is widely used in teletraffic engineering to estimate the number of trunks required based on offered traffic and an acceptable Grade of Service (probability of call blocking):
This flow diagram shows how calls are either connected to agents (or IVR) through the trunk pool or receive a busy signal if no trunks are available.
A simplified Erlang B calculation:
- A = offered traffic in Erlangs (e.g., average number of simultaneous calls)
- N = number of trunks
- B(N, A) = probability that a call is blocked (Grade of Service)
By balancing cost and customer experience, contact centers can optimize their trunk capacity.
Real-Time Trunk Management
Modern contact centers employ real-time monitoring tools to track trunk utilization and respond to surges—by bursting (temporarily increasing trunks), rerouting, or leveraging overflow across multiple sites or cloud platforms.
Benefits of Call Trunking
Call trunking delivers several strategic advantages:
- Cost-Effectiveness: Consolidates lines, reducing infrastructure and maintenance costs.
- Scalability: Easily add or remove trunks to match business needs, especially with SIP or cloud trunks.
- Seamless Global Communication: Trunks enable reliable connectivity across geographic locations, supporting global business operations.
- Omnichannel and CRM Integration: Modern trunks support integration with omnichannel routing, IVR, CRM, and analytics solutions, driving better customer experiences and operational efficiency.
Implementing Call Trunks: Best Practices
Determining Trunk Requirements
Start with a thorough traffic analysis, considering peak call volumes, desired Grade of Service, and business growth projections. A common rule of thumb in call centers is one trunk per 5-8 agents, but precise needs should be calculated using teletraffic engineering techniques like the Erlang B formula.
Cloud vs On-Premises Solutions
- Cloud-Based Trunks: Offer rapid deployment, instant scalability, geographic redundancy, and disaster recovery benefits. Ideal for distributed or remote teams.
- On-Premises Trunks: Provide direct control and may suit organizations with regulatory or legacy integration requirements, but can be less flexible and harder to scale.
Integration with IVR, AI, and Payment Gateways
Modern trunking solutions should integrate seamlessly with IVR systems, artificial intelligence for intelligent routing, and secure payment gateways (PCI DSS compliant). This enhances automation, personalization, and compliance.
PCI Compliance Considerations
When handling payment or sensitive data over phone calls, ensure trunks and associated infrastructure adhere to PCI DSS standards. Encryption, call recording controls, and secure storage are key requirements.
Common Challenges and How to Overcome Them
- Trunk Overload: Prevent overload and busy signals by proactive monitoring, auto-bursting, and predictive capacity planning.
- Security: Protect trunks from toll fraud, eavesdropping, and denial-of-service attacks using SIP security best practices, firewalls, and encryption.
- Quality of Service (QoS): Prioritize voice traffic on networks, especially for SIP trunks, to minimize jitter, latency, and packet loss.
Future of Call Trunking
The future of call trunking is shaped by rapid adoption of cloud telephony, artificial intelligence, and omnichannel solutions. Expect greater automation, dynamic trunk allocation, AI-powered call routing, and deeper integration with CRM and analytics platforms. As telecommunication infrastructure transitions fully to IP and cloud, trunks will become even more elastic, intelligent, and secure.
Conclusion
Call trunks are the backbone of modern telephony and contact center operations, enabling scalable, reliable, and cost-effective voice and data communication. By understanding trunking concepts, types, and best practices, businesses can ensure seamless customer experiences and future-proof their communications infrastructure. Ready to optimize your call trunk strategy? Explore how cloud telephony and SIP trunks can transform your business today.
