VPA: Kubernetes Vertical Pod Autoscaler for Optimal Resource Management

Explore Kubernetes Vertical Pod Autoscaler (VPA), its deployment, configuration, advanced techniques, comparison with HPA, and real-world case studies for optimized resource management and cost savings.

What is a Vertical Pod Autoscaler (VPA)?

The Vertical Pod Autoscaler (VPA) is a Kubernetes component that automatically manages the CPU and memory resource requests and limits of your pods. It analyzes the actual resource consumption of pods over time and recommends optimal values. By right-sizing pods, VPA helps improve cluster resource utilization and reduce costs.

Introduction to VPAs

In a dynamic cloud-native environment, predicting the optimal resource requirements for applications can be challenging. Manually setting resource requests and limits often leads to either over-provisioning (wasting resources) or under-provisioning (causing performance issues). VPAs address this challenge by continuously monitoring pods and adjusting their resource configurations based on their actual needs. This automated scaling improves resource efficiency and simplifies pod resource management.

Understanding Resource Requests and Limits

Resource requests define the minimum amount of resources a pod requires to start. Resource limits define the maximum amount of resources a pod is allowed to consume. Kubernetes uses these values to schedule pods onto nodes and prevent them from consuming excessive resources. Properly configuring resource requests and limits is crucial for ensuring application stability and optimal cluster performance. The VPA automates this process.

How VPAs Work: Recommendation and Update Cycles

The VPA operates in a continuous cycle of observation, recommendation, and update. It monitors the resource consumption of pods using metrics provided by Kubernetes. Based on this data, it generates resource recommendations. These recommendations suggest optimal values for CPU and memory requests and limits. The VPA can then automatically update the pod configurations to match these recommendations, subject to the configured update mode (e.g., Initial, Auto, Off). This automated scaling helps to ensure the container resource optimization of your cloud-native applications.

vpa-example.yaml

1apiVersion: autoscaling.k8s.io/v1
2kind: VerticalPodAutoscaler
3metadata:
4  name: my-app-vpa
5spec:
6  targetRef:
7    apiVersion: apps/v1
8    kind: Deployment
9    name: my-app-deployment
10  updatePolicy:
11    updateMode: "Auto" # Options: "Off", "Initial", "Recreate", "Auto"
12  resourcePolicy:
13    containerPolicies:  #optional configuration per container
14    - containerName: '*'
15      mode: "Auto"
16      minAllowed: #optional settings
17        cpu: 100m
18        memory: 100Mi
19      maxAllowed: #optional settings
20        cpu: 1
21        memory: 1Gi
22

Deploying and Configuring a VPA

Deploying and configuring a VPA involves setting up the necessary components and defining the desired behavior of the autoscaler. Careful configuration is essential for achieving optimal resource utilization and avoiding unexpected issues. The ultimate goal is improving cluster performance and resource efficiency.

Prerequisites: Necessary Components and Tools

Before deploying a VPA, you need to ensure that you have the following components and tools installed:
  • Kubernetes Cluster: A running Kubernetes cluster (version 1.11 or later).
  • Metrics Server: A metrics server is required by the VPA to collect resource usage data from pods. This is a very important part of vpa deployment.
  • VPA Admission Controller: The VPA admission controller intercepts pod creation and update requests and applies the recommended resource configurations.
  • kubectl: The Kubernetes command-line tool for interacting with the cluster.
  • Helm (Optional): A package manager for Kubernetes, which can simplify VPA deployment.

Deployment Methods: Using Helm, YAML Manifests, etc.

You can deploy a VPA using various methods, including:
  • YAML Manifests: Define the VPA object in a YAML file and apply it to the cluster using kubectl apply -f vpa.yaml.
  • Helm: Use a Helm chart to deploy the VPA. This simplifies the process and allows for easy configuration.

Configuring the VPA: Customizing Recommendations and Update Strategies

The VPA offers several configuration options that allow you to customize its behavior. Key configuration parameters include:
  • Target Reference: Specifies the target deployment, replication controller, or replicaset that the VPA should manage.
  • Update Mode: Determines how the VPA updates pod configurations. Options include:
    • Off: Only provides recommendations, but does not automatically update pods.
    • Initial: Applies recommendations only when a pod is first created. This is useful when combined with Horizontal Pod Autoscaler (HPA).
    • Auto: Automatically updates pods when recommendations change. This can cause pod restarts.
    • Recreate: The VPA will evict the pods, then Kubernetes recreate the pods automatically according to the VPA recommendations.
  • Resource Policy: Allows you to specify minimum and maximum resource values, preventing the VPA from recommending excessively low or high values.

helm-values.yaml

1vpa:
2  name: my-app-vpa
3  targetRef:
4    apiVersion: apps/v1
5    kind: Deployment
6    name: my-app-deployment
7  updatePolicy:
8    updateMode: "Auto"
9  resourcePolicy:
10    containerPolicies:
11      - containerName: '*'
12        minAllowed:
13          cpu: 100m
14          memory: 100Mi
15        maxAllowed:
16          cpu: 1
17          memory: 1Gi
18

Advanced VPA Techniques

To maximize the benefits of VPAs, consider these advanced techniques. Proper vpa configuration is essential here.

Integrating with Monitoring Systems

Integrate the VPA with your existing monitoring systems to track its performance and identify potential issues. Monitor VPA metrics such as:
  • Recommended CPU and memory values: Track how the VPA is adjusting resource recommendations over time.
  • Update events: Monitor when the VPA updates pod configurations.
  • Error rates: Identify any errors encountered by the VPA.

Fine-tuning VPA Settings for Optimal Performance

Experiment with different VPA settings to find the configuration that works best for your applications. Consider factors such as:
  • Update mode: Evaluate the impact of different update modes on application availability and performance.
  • Resource policy: Adjust minimum and maximum resource values based on application requirements.
  • VPA's scaleUp/scaleDownDelay: Define the delay to wait between scaling operations.

Handling VPA Errors and Troubleshooting Common Issues

When using VPAs, you may encounter errors or unexpected behavior. Common issues include:
  • VPA failing to make recommendations: This can occur if the metrics server is not properly configured or if the VPA is unable to collect resource usage data.
  • Pods being repeatedly restarted: This can happen if the VPA is configured to aggressively update pod configurations.
  • Resource contention: Ensure that the cluster has sufficient resources to accommodate the VPA's recommendations. VPA deployment requires careful cluster resource utilization.

VPA and Horizontal Pod Autoscaler (HPA): A Comparison

Both VPA and Horizontal Pod Autoscaler (HPA) are Kubernetes autoscaling mechanisms, but they address different aspects of resource management. It is important to understand the differences between vpa vs hpa.

Understanding the Role of HPA

Horizontal Pod Autoscaler (HPA) scales the number of pods in a deployment based on CPU utilization or other custom metrics. It is designed to handle fluctuations in traffic and ensure that the application can handle the current load. Scaling kubernetes pods horizontally is HPA's speciality.

Differences Between VPA and HPA: When to Use Which

  • VPA: Adjusts the resource requests and limits of individual pods. Focuses on pod resource management and automatic resource allocation.
  • HPA: Adjusts the number of pods in a deployment. Focuses on scaling the application to handle traffic demands.
Use VPA when you want to optimize the resource allocation for individual pods. Use HPA when you want to scale the application to handle changes in traffic. A combination of VPA and HPA is often the best approach for comprehensive autoscaling.

Combining VPA and HPA for Comprehensive Autoscaling

Combining VPA and HPA allows you to achieve comprehensive autoscaling. The VPA ensures that each pod is properly sized, while the HPA adjusts the number of pods based on traffic demands. This improves cluster performance and enhances application performance with dynamic scaling. For cloud-native applications, a combined approach is very effective for cost optimization.

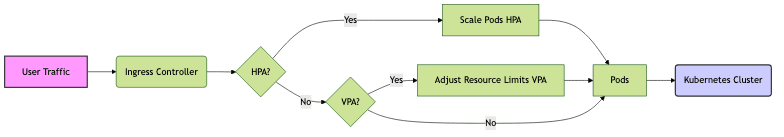

Diagram

Case Studies: Real-World Applications of VPA

VPAs have been successfully deployed in various real-world scenarios to improve resource utilization, reduce costs, and enhance application performance.

Case Study 1: Improved Resource Utilization in a Microservices Architecture

A company running a microservices architecture used VPAs to automatically right-size their pods. This resulted in a 30% reduction in resource consumption without impacting application performance. This demonstrates the effective container resource optimization.

Case Study 2: Cost Savings Through Optimized Resource Allocation

An e-commerce company deployed VPAs to optimize the resource allocation for their online store. This resulted in a 20% reduction in cloud infrastructure costs by dynamic resource allocation.

Case Study 3: Enhanced Application Performance with Dynamic Scaling

A gaming company used VPAs to dynamically scale the resources for their game servers based on player activity. This ensured that the servers had sufficient resources to handle peak loads, resulting in a smoother gaming experience for players. The VPA provided improved cluster performance overall.

The Future of VPAs in Kubernetes

The VPA is an evolving technology, and future developments are likely to further enhance its capabilities and ease of use.

Emerging Trends and Developments

  • Improved recommendation algorithms: Future VPAs may use more sophisticated algorithms to generate more accurate resource recommendations.
  • Integration with other autoscaling mechanisms: VPAs may be integrated with other autoscaling mechanisms, such as Knative, to provide more comprehensive autoscaling solutions.
  • Support for custom metrics: Future VPAs may support custom metrics, allowing them to make resource recommendations based on application-specific data.

Potential Improvements and Enhancements

Potential improvements and enhancements include simplified configuration, improved monitoring, and enhanced troubleshooting capabilities. Kubernetes autoscaling will benefit greatly from these enhancements. A more intuitive user experience for vpa configuration is also being pursued.

Conclusion

The Vertical Pod Autoscaler is a valuable tool for optimizing resource allocation and improving cluster utilization in Kubernetes. By automatically right-sizing pods, VPAs help to reduce costs, enhance application performance, and simplify resource management. As VPAs continue to evolve, they will become an increasingly important component of cloud-native architectures.
