SIP trunking and VoIP are often confused but serve different layers of telecommunications. VoIP is the underlying technology that transmits voice over the internet, while a SIP trunk is a specific service that connects your on-premise PBX to a carrier network using the SIP protocol. Choose SIP trunking when you already have an IP-PBX and want carrier connectivity; choose hosted VoIP when you need a turnkey phone system without managing infrastructure. VideoSDK extends these concepts by bridging SIP telephony into WebRTC rooms for modern real-time applications.
Businesses in 2026 are re-evaluating their phone systems as legacy PRI circuits face sunset deadlines and cloud communications mature. The debate around sip trunk vs voip surfaces in nearly every IT modernization conversation, yet the two terms are frequently misused interchangeably. This article clarifies the technical and business differences between SIP trunking and VoIP, walks through cost, security, and deployment tradeoffs, and provides a decision framework to help you choose the right approach for your organization.
What Is VoIP? The Technology Behind SIP Trunk vs VoIP
VoIP, or Voice over Internet Protocol, is the technology that converts analog voice signals into digital packets and transmits them over the internet or any IP network. Instead of using dedicated copper wires like traditional telephone lines, VoIP relies on codecs to compress audio, packetize it, and send it across data networks using protocols such as RTP for media transport and SIP for signaling.
VoIP can be deployed in several models. Hosted VoIP, also called cloud VoIP, places the call control, routing, and feature logic in the provider's cloud. Your organization simply connects IP phones, softphones, or mobile apps to the provider over the internet. On-premise VoIP keeps the call control logic in a local IP-PBX that you manage, giving you full control over features, routing rules, and integrations but requiring more infrastructure investment.
The key benefits of VoIP include lower per-call costs compared to traditional telephony, rapid scalability (add users by provisioning licenses rather than installing physical lines), and a rich feature set that includes voicemail-to-email, auto-attendants, call routing, and integration with CRM and collaboration tools. According to the W3C WebRTC specification, the underlying IP-based media transport that VoIP pioneered has become the foundation for modern browser-based real-time communications as well.

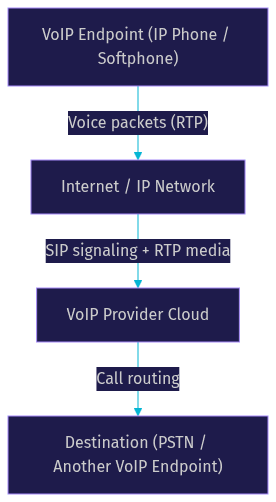

Here is a simplified view of how a VoIP call flows from endpoint to destination:
What Is SIP Trunking? The Service Side of SIP Trunk vs VoIP
SIP trunking is a specific connectivity service that links your on-premise IP-PBX to a telecommunications carrier's network using the Session Initiation Protocol. While VoIP is the broad technology category, a SIP trunk is the virtual pipe that carries your call signaling and media between your PBX and the public switched telephone network (PSTN).
SIP signaling handles call setup, teardown, and feature negotiation between your PBX and the carrier. RTP (Real-time Transport Protocol) carries the actual voice media. The two protocols work in tandem: SIP establishes the session, and RTP streams the audio. This separation of signaling and media is what gives SIP trunking its flexibility and scalability.
SIP trunks replaced legacy Primary Rate Interface (PRI) circuits, which were physical ISDN lines that came in fixed channel increments (typically 23 channels per T1 PRI in North America). A SIP trunk, by contrast, offers virtual channels that can scale up or down dynamically based on call volume. You are not locked into 23-channel increments.
The benefits of SIP trunking include virtual channel sizing, near-infinite scalability compared to physical lines, and full control over your PBX configuration. Organizations that already own an IP-PBX can preserve their investment while gaining the cost and flexibility advantages of IP-based carrier connectivity. VideoSDK's telephony and SIP integration builds on this same principle, bridging traditional SIP trunks into modern WebRTC rooms so that phone callers can join real-time video and audio sessions.

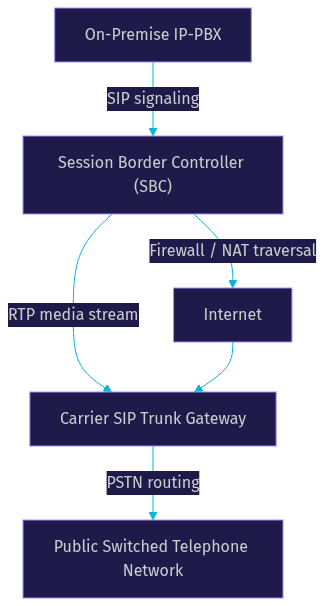

Here is how SIP trunk architecture typically connects an on-premise PBX to a carrier network:
SIP Trunk vs VoIP: Core Differences
The most important distinction in the sip trunk vs voip comparison is scope. VoIP is a technology that describes how voice is transmitted over IP networks. SIP trunking is a service that uses VoIP technology to connect your PBX to a carrier. Every SIP trunk uses VoIP, but not every VoIP deployment uses a SIP trunk.
Control plane versus media plane is another key differentiator. In a hosted VoIP setup, the provider controls both the signaling (call setup, routing, features) and the media (voice transport). In a SIP trunk deployment, your on-premise PBX controls the signaling and feature logic, while the SIP trunk provider primarily transports the media to and from the PSTN.
Where intelligence lives matters for IT planning. Hosted VoIP centralizes intelligence in the provider's cloud, reducing your infrastructure burden but limiting customization. SIP trunking keeps intelligence in your PBX, giving you granular control over call routing, hunt groups, IVR logic, and integrations with internal systems.
Use-case match-ups also differ. SIP trunking fits organizations that already have an IP-PBX and want to reduce PSTN connectivity costs. Hosted VoIP fits greenfield deployments or companies that want to offload phone system management entirely.
| Feature | SIP Trunk | Hosted VoIP |
|---|---|---|
| Scope | Connectivity service | Complete phone system technology |
| Control | You manage PBX logic | Provider manages all logic |
| Cost model | Per channel or concurrent call | Per user or seat |
| Infrastructure | Requires IP-PBX and SBC | Minimal (IP phones plus internet) |
| Scalability | Add virtual channels | Add user licenses |
| Customization | High (full PBX control) | Moderate (provider feature set) |
| Best for | Existing PBX owners | Greenfield or lean IT teams |
The table above is your quickest reference for the sip trunk vs voip decision. The most important row is infrastructure: if you already own an IP-PBX, the SIP trunk column applies directly. If you are starting from scratch, the hosted VoIP column reflects your reality.
Cost Comparison: SIP Trunk vs Hosted VoIP
Pricing models diverge significantly between SIP trunks and hosted VoIP. SIP trunk providers typically charge per concurrent channel (the number of simultaneous calls your trunk supports) or on a metered basis (per minute). Hosted VoIP providers charge per user or per seat, often with unlimited calling included in the monthly fee.
Hidden fees can shift the math considerably. SIP trunking may incur additional charges for E911 service, STIR/SHAKEN attestation, Direct Inward Dial (DID) numbers, and porting fees. Hosted VoIP plans often bundle these into the per-seat price but may charge extra for premium features like call recording, analytics, or CRM integrations.
For small businesses with fewer than 20 users, hosted VoIP usually wins on total cost of ownership because the provider absorbs infrastructure and management costs. For larger enterprises with high call volumes and an existing PBX, SIP trunking delivers better ROI. A company making 50,000 outbound minutes per month can save significantly by paying per-channel SIP trunk rates rather than per-seat VoIP pricing.
SIP Trunk vs VoIP: Security and Compliance
SIP trunk security relies on several layers working together. IP Access Control Lists (ACLs) restrict which IP addresses can send SIP signaling to your PBX. Transport Layer Security (TLS) encrypts SIP signaling to prevent eavesdropping and tampering. Secure Real-time Transport Protocol (SRTP) encrypts the voice media payload, protecting call content even if packets are intercepted. Session Border Controllers (SBCs) add another layer by inspecting and filtering SIP traffic at the network boundary.
VoIP security in hosted models depends more on the provider's infrastructure. Your responsibilities include securing the internet connection (VPN for remote phones, firewall rules for SIP traffic), ensuring endpoint firmware is current, and using strong authentication for user accounts. Most reputable hosted VoIP providers encrypt media in transit and offer SSO integration.
Regulatory compliance applies to both approaches. E911 regulations require that dispatchable location information be transmitted with emergency calls. STIR/SHAKEN is a framework mandated by the FCC in the United States to combat caller ID spoofing through cryptographic call authentication. GDPR and other data protection regulations apply to call recording, metadata storage, and user consent. Both SIP trunk and hosted VoIP providers must support these requirements, but the division of responsibility differs: with SIP trunking, you share more of the compliance burden because you control the PBX.
SIP Trunk vs VoIP: Deployment and Management Considerations
Deploying a SIP trunk requires specific infrastructure components. You need an IP-PBX (such as Asterisk, FreeSWITCH, or a commercial solution), a Session Border Controller for security and NAT traversal, sufficient bandwidth to handle concurrent calls (roughly 100 kbps per call with G.711 codec, though modern codecs like Opus can be more efficient), and properly configured firewall rules to allow SIP and RTP traffic. Quality of Service (QoS) settings on your routers should prioritize voice traffic over data to prevent jitter and packet loss.
Hosted VoIP deployment is simpler. You need reliable internet bandwidth, IP phones or softphones for each user, and access to the provider's administrative portal for user provisioning and feature configuration. The provider handles the PBX, SBC, and carrier relationships.
Ongoing Management
Ongoing management differs in scope. SIP trunking requires you to maintain PBX firmware, monitor trunk health, manage capacity planning, and troubleshoot signaling issues. Hosted VoIP shifts most of this to the provider, but you still need to monitor internet connectivity quality, manage user accounts, and keep endpoint firmware updated.
Common Pitfalls
Common pitfalls include underestimating bandwidth requirements, neglecting QoS configuration, failing to secure SIP ports against toll fraud, and not testing failover scenarios. For organizations bridging SIP telephony into application-layer communication, VideoSDK's REST API reference provides endpoints for managing room sessions that integrate with SIP inbound and outbound call flows.
Choosing the Right Solution: SIP Trunk vs VoIP Decision Framework
Use this decision matrix to evaluate sip trunk vs voip for your organization.
Choose SIP trunking if you already have an IP-PBX you want to keep, your call volume is high enough to justify per-channel pricing, your IT team can manage SBC and PBX configuration, you need deep customization of call routing and IVR logic, and your organization has compliance requirements that demand on-premise control over call data.
Choose hosted VoIP if you are starting from scratch without an existing PBX, your team is small and lacks dedicated telephony expertise, you want predictable per-seat pricing, you value rapid deployment over granular control, and you prefer to offload security and compliance management to a provider.
For organizations building custom real-time communication applications that need to bridge phone callers into WebRTC sessions, consider a hybrid approach using VideoSDK's SIP telephony integration. This solution routes inbound SIP calls into VideoSDK rooms and supports outbound calls through SIP trunks from providers like Twilio, Vonage, Telnyx, and Plivo.
Real-World Example: SIP Trunk Migration Outcomes
Consider a mid-size insurance company with 200 employees and an existing on-premise IP-PBX handling customer service calls. They were spending approximately $4,800 per month on 6 PRI circuits (138 channels) plus long-distance charges averaging $2,000 monthly.
After migrating to SIP trunking with a per-channel pricing model, they provisioned 80 concurrent channels (sufficient for peak call volume based on traffic analysis) at approximately $15 per channel per month. Their new monthly cost totaled $1,200 for channels plus $800 in metered long-distance, coming to $2,000. The migration reduced their telephony spend by roughly 70 percent while increasing available concurrent channels by eliminating the fixed PRI increments.
Call quality improved because the SIP trunk provider supported the Opus codec, which adapts better to variable bandwidth than the G.711 codec used on their PRI circuits. The company also integrated their SIP trunk with VideoSDK rooms to enable video consultations for complex claims, allowing phone callers to be seamlessly escalated into a video session with an adjuster.
Definitions Glossary
SIP Trunk: A virtual connection service that links an on-premise IP-PBX to a carrier network using the Session Initiation Protocol, replacing physical PRI lines with scalable virtual channels.
VoIP: Voice over Internet Protocol, the technology that converts voice into digital packets and transmits them over IP networks using codecs and protocols like RTP and SIP.
SIP (Session Initiation Protocol): A signaling protocol used to establish, modify, and terminate real-time communication sessions, including voice and video calls, over IP networks.
RTP (Real-time Transport Protocol): A network protocol that delivers real-time audio and video media streams over IP networks, working alongside SIP signaling in VoIP and SIP trunk deployments.
SBC (Session Border Controller): A network device or software that sits at the boundary of a SIP network to provide security, NAT traversal, traffic policing, and protocol translation for SIP and RTP traffic.
PRI (Primary Rate Interface): A legacy ISDN circuit providing 23 voice channels (in North America) over a single T1 line, largely replaced by SIP trunks in modern deployments.
STIR/SHAKEN: A regulatory framework mandated by the FCC that uses cryptographic authentication to verify caller identity and combat caller ID spoofing on IP-based telephony networks.
Key Takeaways
- VoIP is the underlying technology for transmitting voice over IP networks, while SIP trunking is a specific service that connects your PBX to a carrier using that technology.
- SIP trunking delivers better ROI for organizations with existing IP-PBX infrastructure and high call volumes, while hosted VoIP wins for greenfield deployments and lean IT teams.
- Security mechanisms differ: SIP trunking relies on IP ACLs, TLS, SRTP, and SBCs, while hosted VoIP shifts most security responsibility to the provider.
- Regulatory compliance (E911, STIR/SHAKEN, GDPR) applies to both approaches, but the division of responsibility between you and your provider varies significantly.
- VideoSDK bridges traditional SIP telephony into modern WebRTC rooms, enabling hybrid architectures where phone callers join real-time video and audio sessions.
Conclusion
The sip trunk vs voip comparison ultimately comes down to scope, control, and infrastructure. VoIP is the technology layer; SIP trunking is a connectivity service built on that technology. If you already own an IP-PBX and want to cut PSTN costs while retaining full control, SIP trunking is the clear path. If you want a turnkey phone system without managing telephony infrastructure, hosted VoIP is the better fit. For developers building real-time communication applications that need to bridge traditional phone calls into WebRTC sessions, VideoSDK's telephony integration provides the SIP-to-WebRTC gateway that makes hybrid architectures practical. Explore the VideoSDK telephony documentation to learn how to route inbound and outbound SIP calls into your application. You can get started for free at app.videosdk.live/login. What are you building with VideoSDK? Drop a comment below and share your telephony integration use case.
