What is the SIP SDP protocol and why is it important?

The SIP SDP protocol refers to the integration of Session Initiation Protocol (SIP) with Session Description Protocol (SDP) to set up, manage, and describe media sessions in VoIP and multimedia applications. It enables endpoints to negotiate media parameters such as codecs and transport addresses.

How does SDP work within a SIP message?

SDP is typically included in the body of SIP messages (like INVITE or 200 OK), describing session details such as media type, codec, and transport information for the session being established.

What are common fields in an SDP message?

Key fields in an SDP message include v= (version), o= (originator), s= (session name), c= (connection info), t= (timing), m= (media), and a= (attributes). Each field provides specific session-related data.

How is media negotiated using the SIP SDP protocol?

During call setup, one endpoint offers its media capabilities in an SDP message. The other endpoint responds with its supported options, allowing both sides to agree on compatible codecs and media parameters, following the offer/answer model.

What are some best practices for implementing the SIP SDP protocol securely?

Best practices include encrypting the SDP payload (using TLS for SIP signaling and SRTP for media), validating SDP fields, and ensuring only supported codecs and transport protocols are accepted to reduce security risks.

Which tools can help troubleshoot SIP SDP protocol issues?

Common tools include Wireshark for packet analysis, SIPp for testing SIP/SDP scenarios, and SIP debuggers present in most VoIP PBX systems.

Can the SIP SDP protocol handle video and other media types?

Yes, the SIP SDP protocol supports negotiation for audio, video, and other media types by listing supported media formats and codecs in the SDP message.

SIP SDP Protocol: The Complete Guide for VoIP & Multimedia (2025)

Explore the SIP SDP protocol in depth: definitions, call flow, message anatomy, security, and practical VoIP implementation with real-world SIP/SDP code examples.

Introduction to the SIP SDP Protocol

The SIP SDP protocol sits at the core of modern VoIP and multimedia communications, powering everything from business PBX systems to global teleconferencing. SIP (Session Initiation Protocol) and SDP (Session Description Protocol) work hand-in-hand to establish, negotiate, and manage these multimedia sessions. Understanding the SIP SDP protocol is crucial for developers, network engineers, and IT professionals who design, deploy, or troubleshoot VoIP infrastructures.

SIP serves as the signaling backbone, responsible for initiating, modifying, and terminating sessions between endpoints—be they softphones, IP phones, or gateways. However, SIP alone doesn’t describe the actual media parameters required for voice or video; that’s where SDP comes in. By embedding SDP payloads within SIP messages, endpoints can exchange vital information about codecs, media types, transport addresses, and more.

As we move into 2025, interoperability and security concerns are more critical than ever. This guide explores the technical underpinnings of the SIP SDP protocol, walks through message formats and call flows, and highlights best practices and troubleshooting techniques. Whether you’re integrating SIP into a PBX, developing custom VoIP solutions, or ensuring secure multimedia communication, mastering the SIP SDP protocol remains a vital skill.

Understanding SIP: The Foundation

SIP, or Session Initiation Protocol, is a signaling protocol standardized by the IETF for initiating, maintaining, and terminating real-time sessions. SIP is text-based, similar to HTTP, and is highly extensible—making it ideal for voice, video, and instant messaging applications.

SIP manages three fundamental phases in communication:

Session setup: Initiates calls or conferences between endpoints.
Session management: Modifies parameters (e.g., switching codecs, adding video).
Session teardown: Ends or transfers sessions cleanly.

A typical SIP message structure involves various methods, such as INVITE (to start a call), ACK (to confirm), and BYE (to terminate):

1INVITE sip:alice@example.com SIP/2.0
2Via: SIP/2.0/UDP pc33.example.com;branch=z9hG4bK776asdhds
3From: Bob <sip:bob@example.com>;tag=456248
4To: Alice <sip:alice@example.com>
5Call-ID: 843817637684230@998sdasdh09
6CSeq: 314159 INVITE
7Contact: <sip:bob@pc33.example.com>
8Content-Type: application/sdp
9Content-Length: ...
10
11[v=0\no=Bob 53655765 2353687637 IN IP4 pc33.example.com\ns=Session SDP\nc=IN IP4 pc33.example.com\nt=0 0\nm=audio 6000 RTP/AVP 0\na=rtpmap:0 PCMU/8000]
12

SIP headers define routing, user identity, call IDs, and more. The message body (often containing SDP) details media capabilities.

What is SDP? Role in Multimedia Sessions

The Session Description Protocol (SDP) is a format for describing multimedia communication sessions for the purposes of session announcement, invitation, and parameter negotiation.

SDP’s primary role in the sip sdp protocol stack is to provide a standardized way to describe:

Media types (audio, video, application)
Codec selections and capabilities
Transport addresses (IP, port)
Session timing and attributes

SDP is not a transport protocol but a descriptive language. It’s typically carried within SIP message bodies (such as in INVITE or 200 OK messages) to ensure both parties agree on session parameters prior to media exchange.

This tight coupling means that the effectiveness of SIP in VoIP or unified communications depends heavily on accurate and compatible SDP negotiation. Without SDP, SIP could set up calls, but endpoints would lack the necessary information to exchange media streams using RTP or similar protocols.

SIP and SDP: How They Work Together

The sip sdp protocol combines SIP's signaling and SDP's session description to enable multimedia calls. SIP manages the signaling—establishing the connection—while SDP negotiates the media parameters (such as codecs and ports) carried inside SIP message bodies.

During a typical call setup, the caller sends a SIP INVITE with an embedded SDP offer. The callee responds with a SIP 200 OK containing an SDP answer. SIP ensures the messages reach their destination; SDP ensures both sides agree on how the media stream will be exchanged.

Example: SIP INVITE with Embedded SDP

1INVITE sip:bob@voip.example.com SIP/2.0
2Via: SIP/2.0/UDP 192.0.2.4;branch=z9hG4bK74bf9
3Max-Forwards: 70
4From: Alice <sip:alice@voip.example.com>;tag=1928301774
5To: Bob <sip:bob@voip.example.com>
6Call-ID: a84b4c76e66710@pc33.example.com
7CSeq: 314159 INVITE
8Contact: <sip:alice@192.0.2.4>
9Content-Type: application/sdp
10Content-Length: 151
11
12v=0\no=alice 2890844526 2890844526 IN IP4 192.0.2.4\ns=VoIP Call\nc=IN IP4 192.0.2.4\nt=0 0\nm=audio 49170 RTP/AVP 0 8 18\na=rtpmap:0 PCMU/8000\na=rtpmap:8 PCMA/8000\na=rtpmap:18 G729/8000
13

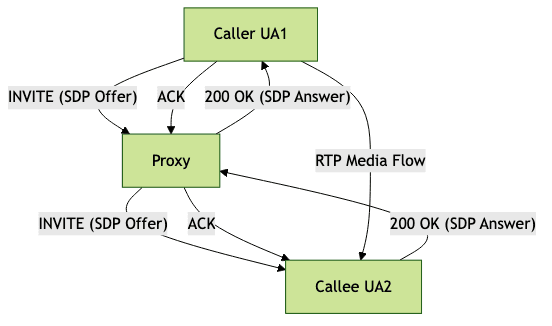

Mermaid Diagram: SIP Call Flow with SDP Exchange

Anatomy of an SDP Message

SDP messages are structured as a sequence of lines, each starting with a single character and an equals sign. Each line describes a specific session attribute.

Key Fields Explained

Field	Description	Example
v=	Version	v=0
o=	Origin	o=alice 2890844526 2890844526 IN IP4 192.0.2.4
s=	Session Name	s=VoIP Call
c=	Connection Info	c=IN IP4 192.0.2.4
t=	Timing	t=0 0
m=	Media	m=audio 49170 RTP/AVP 0 8 18
a=	Attribute	a=rtpmap:0 PCMU/8000

v=: Protocol version (always 0)
o=: Username, session ID, version, network type, address
s=: Human-readable session name
c=: Network type, address type, connection address
t=: Start and stop times
m=: Media type, port, protocol, payload types
a=: Attributes (e.g., codec mapping, direction)

Example SDP Message

1v=0\no=alice 2890844526 2890844526 IN IP4 192.0.2.4\ns=VoIP Call\nc=IN IP4 192.0.2.4\nt=0 0\nm=audio 49170 RTP/AVP 0 8 18\na=rtpmap:0 PCMU/8000\na=rtpmap:8 PCMA/8000\na=rtpmap:18 G729/8000
2

This example shows an SDP offer for an audio session, supporting multiple codecs (PCMU, PCMA, G.729) over RTP.

SIP SDP Protocol in Call Flow

Let’s break down a SIP call flow using the sip sdp protocol, step by step:

INVITE (Offer): Caller sends SIP INVITE with SDP offer.
100 Trying: Proxy acknowledges receipt.
180 Ringing: Callee’s device rings.
200 OK (Answer): Callee replies with SIP 200 OK, embedding SDP answer.
ACK: Caller confirms receipt; RTP media flows per negotiated SDP.
BYE: Session ends; resources are released.

The offer/answer model ensures both parties agree on media parameters before any RTP packets are sent.

Mermaid Diagram: SIP/SDP Negotiation Process

Practical Implementation: SIP SDP Protocol in VoIP Systems

In real-world deployments, the sip sdp protocol appears in PBX systems, softphones, SIP trunks, and VoIP gateways. Implementing SIP/SDP requires:

Codec negotiation: Common codecs include PCMU (G.711u), PCMA (G.711a), G.729, and Opus.
Media types: Audio and video are most prevalent, but SDP supports application data and text.
Config tips:
- Ensure endpoint compatibility (matching codecs and payload types).
- SIP proxies and SBCs (Session Border Controllers) may alter SDP for NAT traversal or transcoding.
- Test with tools like Wireshark or sngrep to analyze SIP/SDP exchanges.

For example, in a FreePBX deployment, you’d configure supported codecs in the SIP trunk and endpoint settings. In softphones (like Linphone or Zoiper), ensure both SIP and SDP parameters match those of your PBX or provider.

Security and Best Practices for SIP SDP Protocol

Security is paramount in any modern sip sdp protocol deployment:

Encryption: Use Secure RTP (SRTP) for media and TLS for SIP signaling to prevent eavesdropping.
SDP Privacy: Encrypt SDP payloads or use S/MIME to protect session details.
Best practices:
- Disable unused codecs and media types
- Restrict SIP access to trusted IPs
- Regularly update software to patch vulnerabilities

These measures help defend against VoIP-specific threats like call hijacking, toll fraud, and data interception.

Troubleshooting SIP SDP Protocol Issues

Common sip sdp protocol issues include codec mismatches, NAT traversal failures, and media negotiation errors. To troubleshoot:

Use packet capture tools (Wireshark, tcpdump) to inspect SIP/SDP exchanges
Validate SDP attributes and media addresses
Check endpoint logs for negotiation failures

Specialized SIP/SDP debugging tools (sngrep, SIPp) further streamline troubleshooting for developers and VoIP admins.

Conclusion

The sip sdp protocol forms the backbone of VoIP and multimedia communications in 2025. By understanding SIP’s signaling capabilities and SDP’s detailed media negotiation, engineers can ensure robust, interoperable, and secure deployments. Whether setting up a PBX or troubleshooting a call flow, a solid grasp of SIP/SDP fundamentals remains essential for any modern communications stack.
