Introduction to Real Time Chat Protocols
A real time chat protocol is a set of rules and conventions that enables instant communication between users or systems over a network. In today's digital ecosystem, real time chat protocols form the backbone of instant messaging applications, collaborative tools, and live support systems. The demand for seamless, low-latency messaging has led to the evolution of robust protocols such as WebSocket, XMPP, Matrix, IRC, and more. These protocols are pivotal for delivering reliable, interactive, and secure communication experiences in both consumer and enterprise applications.
Understanding Real Time Chat Protocols
Real time chat protocols operate by facilitating the rapid exchange of messages between clients and servers (or between peers) with minimal delay. The key requirements for these protocols include:
- Low Latency: Messages must reach recipients almost instantly.
- Reliability: Guaranteed message delivery, even under unstable network conditions.
- Scalability: Ability to support thousands or millions of concurrent users.
- Security: Protection of data with encryption and authentication.
Architecturally, real time chat protocols typically fall into two models:
- Client-Server: Clients connect to a central server that manages message routing (e.g., WebSocket, XMPP, Matrix).
- Peer-to-Peer (P2P): Clients communicate directly, with or without a central authority (e.g., some custom Matrix deployments, certain minimalist protocols).

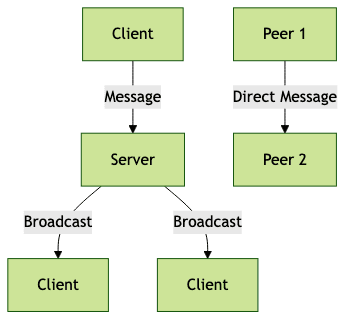

The diagram illustrates the centralized client-server architecture (left) and a basic P2P model (right). Choosing the right architecture depends on scalability, control, and privacy requirements.
Popular Real Time Chat Protocols
WebSocket
WebSocket is a protocol providing full-duplex communication channels over a single TCP connection. It is widely used in real time chat applications due to its simplicity and efficiency, especially in browser environments.
Pros:
- Persistent, low-overhead connections
- Native support in modern browsers
- Suited for high-frequency message exchange
Cons:
- Requires custom message framing/handling
- Security features (e.g., encryption) must be implemented at the application level
1// Simple WebSocket client (JavaScript)
2const ws = new WebSocket(\"wss://chat.example.com/socket\");
3ws.onopen = () => ws.send(\"Hello, server!\");
4ws.onmessage = (event) => console.log(\"Received:\", event.data);
5ws.onerror = (err) => console.error(\"WebSocket error:\", err);
6XMPP with Real Time Text (RTT)
XMPP (Extensible Messaging and Presence Protocol) is an open standard for messaging. The XEP-0301 extension adds real time text (RTT) support, allowing users to see each other's keystrokes live.
Features:
- Real time text editing and synchronization
- Accessibility for users with disabilities
- Message history, presence, and group chat
Use Cases:
- Collaborative editing, live support, accessible chat
1<!-- XMPP RTT XML Message Example -->
2<message from=\"alice@chat.example.com\" to=\"bob@chat.example.com\">
3 <body>H</body>
4 <rtt xmlns=\"urn:xmpp:rtt:0\" event=\"edit\" seq=\"1\">e</rtt>
5</message>
6Matrix
Matrix is a decentralized, open source real time chat protocol designed for interoperability and security. It enables federated communication across independent servers, supporting end-to-end encryption, extensibility, and open APIs.
Key strengths:
- Native end-to-end encryption
- Federation: servers can communicate across domains
- Rich ecosystem (e.g., Element client, Synapse server)
- Open standards and active developer community
Developers can easily prototype chat apps or integrate with existing systems using Matrix's SDKs and REST APIs.
STOMP
STOMP (Simple\Streaming Text Oriented Messaging Protocol) is a simple, text-based protocol for asynchronous message-oriented middleware. While not designed exclusively for chat, STOMP's simplicity and wide broker support make it suitable for basic real time chat use cases.
- Easy to implement with many language libraries
- Works well over WebSockets
- Lacks some chat-specific features (e.g., presence, typing indicators)
Other Notable Protocols (IRC, Mitsubachi, GarliChat)
IRC remains popular for open, distributed group chat. Mitsubachi offers minimalist, peer-to-peer chat. GarliChat focuses on encrypted, decentralized communication.
Key Features and Comparison of Real Time Chat Protocols
| Protocol | Latency | Encryption | Group Chat | Extensibility | Complexity |
|---|---|---|---|---|---|
| WebSocket | Low | App-level | Yes | High | Low |
| XMPP/RTT | Low | Optional | Yes | High | Medium |
| Matrix | Low | E2E Native | Yes | High | Medium |
| STOMP | Low | App-level | Limited | Medium | Low |
| IRC | Medium | App-level | Yes | Low | Low |
| Mitsubachi | Low | App-level | No | Low | Low |
| GarliChat | Low | E2E Native | Yes | Medium | Medium |

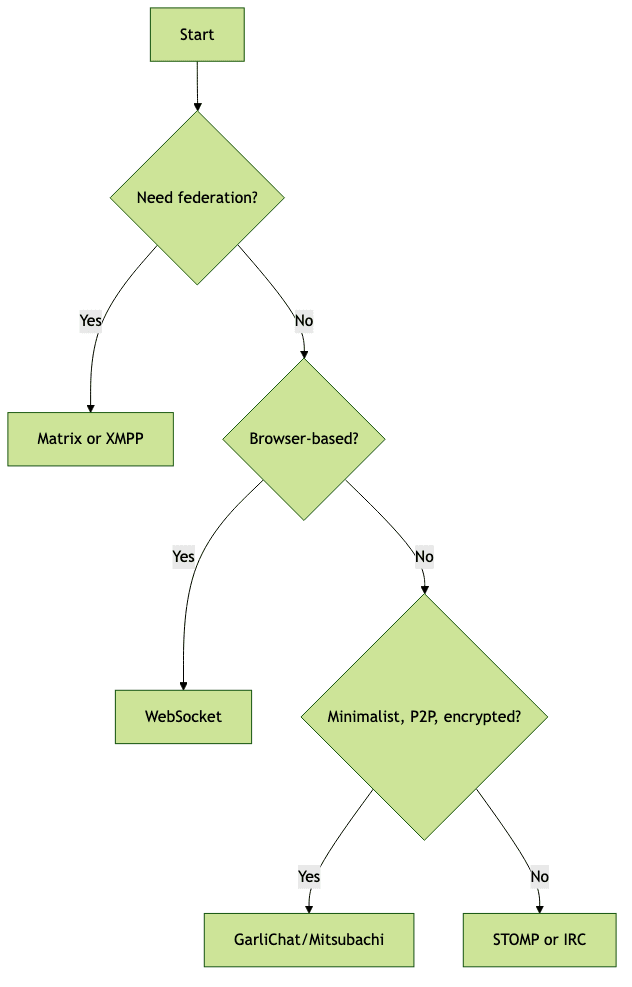

When choosing a protocol, consider required features, scalability, security, and ecosystem support. For example, choose Matrix or XMPP for federated, extensible chat with encryption. WebSocket is ideal for custom, high-performance messaging with full control.
Implementing a Real Time Chat Protocol: Best Practices
Security
- Always use TLS/SSL to encrypt traffic.
- Apply authentication (OAuth, tokens, etc.) for all clients.
- Use protocol-native encryption (e.g., Matrix) when possible; otherwise, implement at the app layer.
- Avoid exposing sensitive metadata in messages.
Message Delivery
- Acknowledge message receipt (ACK/NACK).
- Implement message retry and deduplication logic.
- Ensure correct message ordering (sequence IDs or timestamps).
- Handle errors gracefully, logging issues and providing user feedback.
Group Chat & State Management
- Keep group membership and permissions synchronized.
- Use presence indicators and typing notifications for better UX.
- Persist chat history with robust storage/backups.
Performance & Scalability
- Optimize payload size (e.g., compress messages, binary formats).
- Use efficient message broadcasting (fan-out, pub/sub).
- Horizontally scale backend and consider sharding.
1# Example: Reliable message delivery with ack and retry
2import time
3class ChatClient:
4 def __init__(self, server):
5 self.server = server
6 def send_message(self, msg):
7 for attempt in range(3):
8 try:
9 ack = self.server.send(msg)
10 if ack:
11 print(\"Message delivered\")
12 return True
13 except Exception as e:
14 print(f\"Error: {e}\")
15 time.sleep(2 ** attempt) # Exponential backoff
16 print(\"Delivery failed\")
17 return False
18Real World Use Cases of Real Time Chat Protocols
- Customer Support: XMPP, Matrix, WebSocket for live agent chat.
- Gaming: WebSocket for low-latency, in-game communication.
- Collaborative Editing: XMPP RTT, Matrix for real time text sync.
- Live Transcription: XMPP RTT for accessibility.
- Emergency Services: Matrix for decentralized, resilient messaging.
Each use case has unique requirements for scalability, security, and reliability, influencing the protocol choice.
Conclusion
Choosing the right real time chat protocol is essential for building fast, reliable, and secure communication apps. Whether you need extensibility, federation, or lightweight messaging, understanding protocol trade-offs will set your project up for success. Explore open source options, experiment with SDKs, and prototype to find the best fit for your needs.
