In a world where we are all connected through phones over audio and video calls, if you are planning to make one such app, you have landed at the right place.

We will be building a complete video calling app in React Native, which will allow you to make and receive video calls seamlessly. We'll use VideoSDK for video conferencing and React Native CallKeep to manage the call UI. This is a two-part series in which we will first implement CallKeep in Android and then configure and tweak it for iOS.

Now that all the requirements are well explained, let us dive right into the fun part, but if you are too eager to see the results, here is the link to test the app and the complete code for the app.

What is CallKeep?

CallKeep is a React Native library that allows you to handle the incoming call UI on the Android and iOS device in any given state of the app, i.e., foreground (running), background, quit, locked device, etc.

Before building the app, you should be aware of how the app will function internally, which in turn will help with the easy development process.

How will the app function?

To better understand how the app functions, let's take a scenario where John wants to call his friend Max. John will start by opening our app, where he will enter Max's caller ID and hit call. Max will see an incoming call UI on his phone, where he can accept or reject the call. Once he accepts the call, we will setup the React Native video call between them using VideoSDK.

You might think these are super simple. Well, let's elaborate a little more on the nuance of the implementation.

  1. When John enters Max's Caller ID and hits the Call button, the first thing we do is map it to our Firebase database and send a notification on his device.
  2. When Max's device receives these notifications, our app's logic will show him the incoming call UI using the React Native CallKeep library.
  3. When Max accepts or rejects the incoming call, we will send the status back to John using notifications and eventually start up the video call between them.

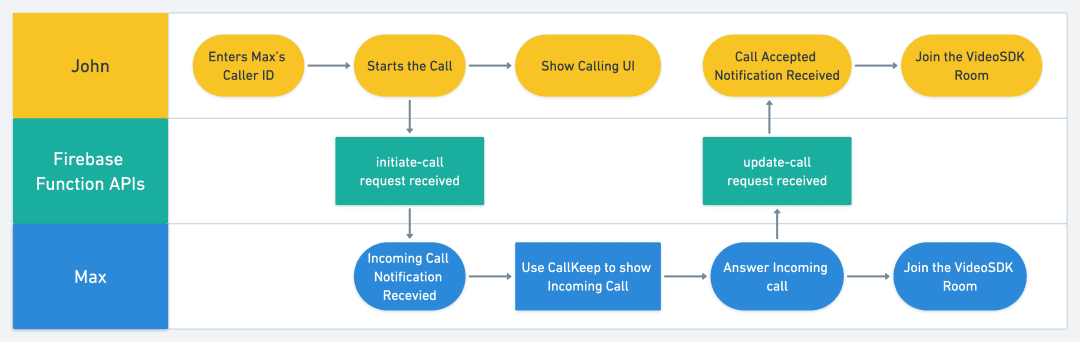

Here is a pictorial representation of the flow for a better understanding.

Video SDK Image

Now that we have established the flow of the app and how it functions, let's get started with the development without any more chit-chat.

Requirements and Libraries for the App

First, let's have a look at the set of libraries we will be using to establish the functionalities of the app.

  1. React Native CallKeep: These libraries will help with invoking the incoming call on the device.
  2. React Native VoIP Push Notification: These libraries are used to send push notifications on iOS devices, as the Firebase notifications do not function well on iOS devices when the app is in a killed state.
  3. VideoSDK RN Android Overlay Permission: These libraries will handle overlay permission for newer Android versions, making sure the incoming call is always visible.
  4. React Native Firebase Messaging: These libraries are used for the sending and receiving of the Firebase notification, which will invoke our incoming call UI.
  5. React Native Firebase Firestore: These libraries are used for storing the caller ID and device token, which will be used for establishing the video calls.

If we look at the development requirements, here is what you will be needing:

  • Node.js v12+
  • NPM v6+ (Included with newer Node versions)
  • Android Studio and Xcode are installed.
  • A Video SDK Token (Dashboard > Api-Key) (Video Tutorial)
  • A minimum of two physical devices is required to test the calling feature.

Client Side Setup for a React Native Android App

Let's start by creating a new React Native app using the command:

npx react-native init VideoSdkCallKeepExample

Now that our basic app is created, let's start by installing all the dependencies.

  1. First, we will install @react-navigation/native and its dependencies to provide navigation within the app.
npm install @react-navigation/native
npm install @react-navigation/stack
npm install react-native-screens react-native-safe-area-context react-native-gesture-handler

2. Second on our list of dependencies is the VideoSDK library which will provide video conferencing to the app.

npm install "@videosdk.live/react-native-sdk"
npm install "@videosdk.live/react-native-incallmanager"

3. Next will be installing dependencies related to Firebase.

npm install @react-native-firebase/app
npm install @react-native-firebase/messaging
npm install @react-native-firebase/firestore
npm install firebase

4. And finally, the React Native CallKeep library and the other libraries required for the push notification and permissions

npm install git+https://github.com/react-native-webrtc/react-native-callkeep#4b1fa98a685f6502d151875138b7c81baf1ec680
npm install react-native-voip-push-notification
npm install videosdk-rn-android-overlay-permission
npm install react-native-uuid
Note: We have put the reference to the React Native CallKeep library using the github repository link, as the NPM version has build issues with Android.

We are all set up with our dependencies. Let us now start with the Android setup for all the libraries that we have installed.

React Native Android Setup

VideoSDK Setup

  1. Lets start by adding the required permissions and meta-data in the AndroidManifest.xml file. Below mentioned are all the permission you need to add in the Β android/app/src/mainAndroidManifest.xml
<uses-permission android:name="android.permission.ACCESS_NETWORK_STATE" />
<!-- Needed to communicate with already-paired Bluetooth devices. (Legacy up to Android 11) -->
<uses-permission
                 android:name="android.permission.BLUETOOTH"
                 android:maxSdkVersion="30" />
<uses-permission
                 android:name="android.permission.BLUETOOTH_ADMIN"
                 android:maxSdkVersion="30" />

<!-- Needed to communicate with already-paired Bluetooth devices. (Android 12 upwards)-->
<uses-permission android:name="android.permission.BLUETOOTH_CONNECT" />

<!-- Needed to access Camera and Audio -->
<uses-permission android:name="android.permission.CAMERA" />
<uses-permission android:name="android.permission.MODIFY_AUDIO_SETTINGS" />
<uses-permission android:name="android.permission.RECORD_AUDIO" />
<uses-permission android:name="android.permission.SYSTEM_ALERT_WINDOW" />
<uses-permission android:name="android.permission.ACTION_MANAGE_OVERLAY_PERMISSION" />
<uses-permission android:name="android.permission.FOREGROUND_SERVICE"/>
<uses-permission android:name="android.permission.WAKE_LOCK" />

<application>
    // ...
   	<meta-data android:name="live.videosdk.rnfgservice.notification_channel_name"
      android:value="Meeting Notification"
     />
    <meta-data android:name="live.videosdk.rnfgservice.notification_channel_description"
    android:value="Whenever meeting started notification will appear."
    />
    <meta-data
    android:name="live.videosdk.rnfgservice.notification_color"
    android:resource="@color/red"
    />
    <service android:name="live.videosdk.rnfgservice.ForegroundService" android:foregroundServiceType="mediaProjection"></service>
    <service android:name="live.videosdk.rnfgservice.ForegroundServiceTask"></service>
    // ...
</application>

2. Β Add following lines in the app-level build.gradle file at android/app/build.gradle inside the dependencies {}

implementation project(':rnfgservice')
implementation project(':rnwebrtc')
implementation project(':rnincallmanager')

3. Add following lines in the android/settings.gradle file.

include ':rnwebrtc'
project(':rnwebrtc').projectDir = new File(rootProject.projectDir, '../node_modules/@videosdk.live/react-native-webrtc/android')

include ':rnincallmanager'
project(':rnincallmanager').projectDir = new File(rootProject.projectDir, '../node_modules/@videosdk.live/react-native-incallmanager/android')

include ':rnfgservice'
project(':rnfgservice').projectDir = new File(rootProject.projectDir, '../node_modules/@videosdk.live/react-native-foreground-service/android')

4. Update the MainApplication.java with the following packages.

//Add these imports
import live.videosdk.rnfgservice.ForegroundServicePackage;
import live.videosdk.rnincallmanager.InCallManagerPackage;
import live.videosdk.rnwebrtc.WebRTCModulePackage;

public class MainApplication extends Application implements ReactApplication {
  private static List<ReactPackage> getPackages() {
    @SuppressWarnings("UnnecessaryLocalVariable")
    List<ReactPackage> packages = new PackageList(this).getPackages();
    // Packages that cannot be autolinked yet can be added manually here, for example:
    // packages.add(new MyReactNativePackage());

    //Add these packages
    packages.add(new ForegroundServicePackage());
    packages.add(new InCallManagerPackage());
    packages.add(new WebRTCModulePackage());
    return packages;
  }
}

5. Lastly register the VideoSDK service to the app in the index.js file.

// Import the library
import { register } from '@videosdk.live/react-native-sdk';

// Register the VideoSDK service
register();

CallKeep Setup for React Native Android App

  1. Lets start by adding the required permissions and meta-data in the AndroidManifest.xml file. Below mentioned are all the permission you need to add in the Β android/app/src/mainAndroidManifest.xml
<!-- Needed to for the call trigger purpose -->
<uses-permission android:name="android.permission.BIND_TELECOM_CONNECTION_SERVICE"/>
<uses-permission android:name="android.permission.READ_PHONE_STATE" />
<uses-permission android:name="android.permission.CALL_PHONE" />

<application>
    // ...

    <activity
        android:name=".MainActivity"
        android:label="@string/app_name"
        android:configChanges="keyboard|keyboardHidden|orientation|screenSize|uiMode"
        android:launchMode="singleTask"
        android:windowSoftInputMode="adjustResize"
        android:exported="true"
        >
        <intent-filter>
            <action android:name="android.intent.action.MAIN" />
            <category android:name="android.intent.category.LAUNCHER" />
        </intent-filter>


        //...Add these intent filter to allow deep linking
        <intent-filter>
            <action android:name="android.intent.action.VIEW" />
            <category android:name="android.intent.category.DEFAULT" />
            <category android:name="android.intent.category.BROWSABLE" />
            <data android:scheme="videocalling" />
          </intent-filter>
      </activity>

    <service android:name="io.wazo.callkeep.VoiceConnectionService"
        android:label="Wazo"
        android:permission="android.permission.BIND_TELECOM_CONNECTION_SERVICE"
        android:foregroundServiceType="camera|microphone"
        android:exported:"true"
    >

        <intent-filter>
            <action android:name="android.telecom.ConnectionService" />
        </intent-filter>
    </service>
    <service android:name="io.wazo.callkeep.RNCallKeepBackgroundMessagingService" />
    // ....
</application>

Firebase Setup for React Native Android App

  1. To start, go ahead and create a new Firebase project from here.

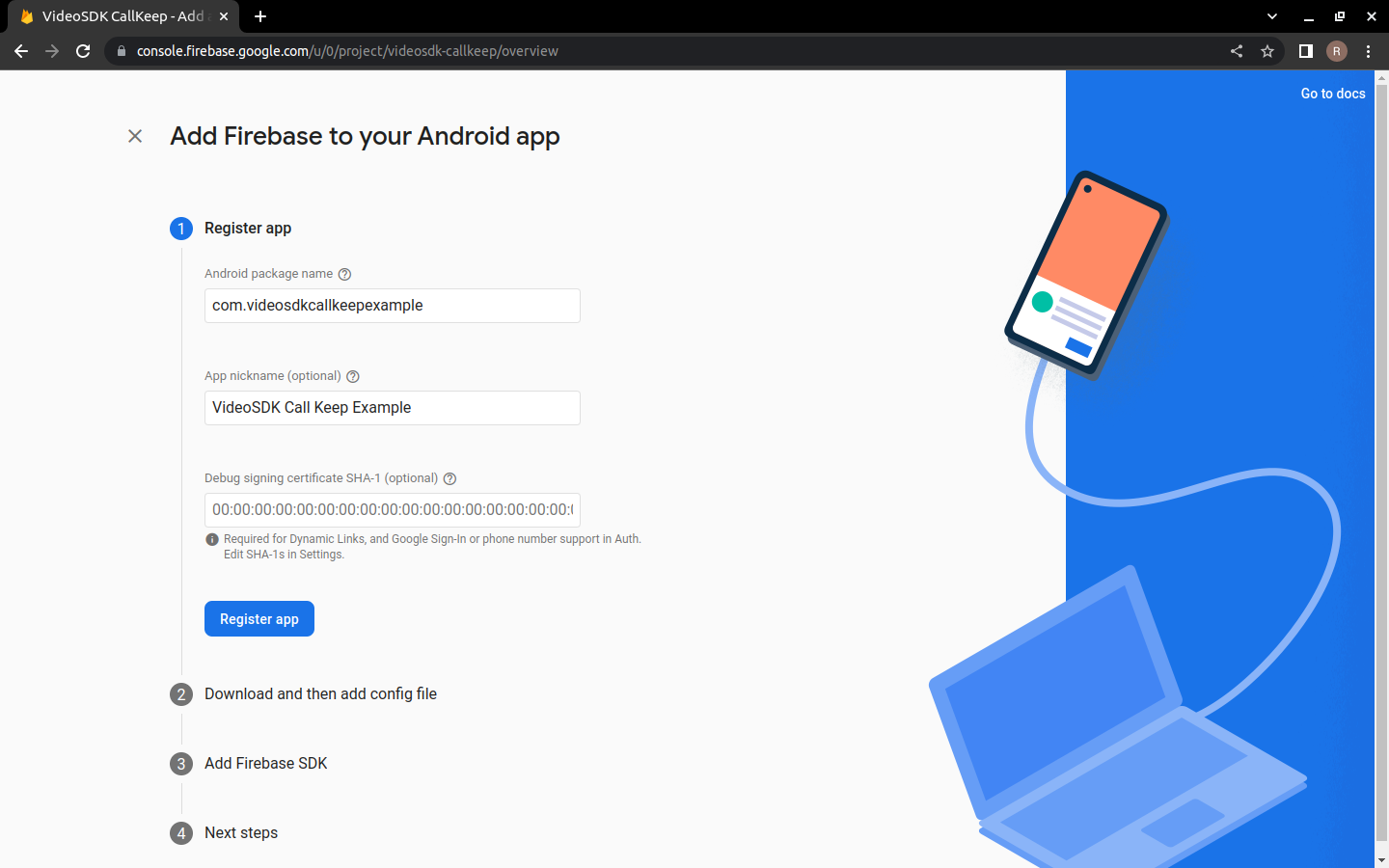

  2. Once the project is created, add your React Native Android app to the Firebase project by clicking on the Android icon.
  3. Fill in the applicationId for your app in the provided fields and click Register App.
Video SDK Image

4. Download the google-services.json file and move it to android/app

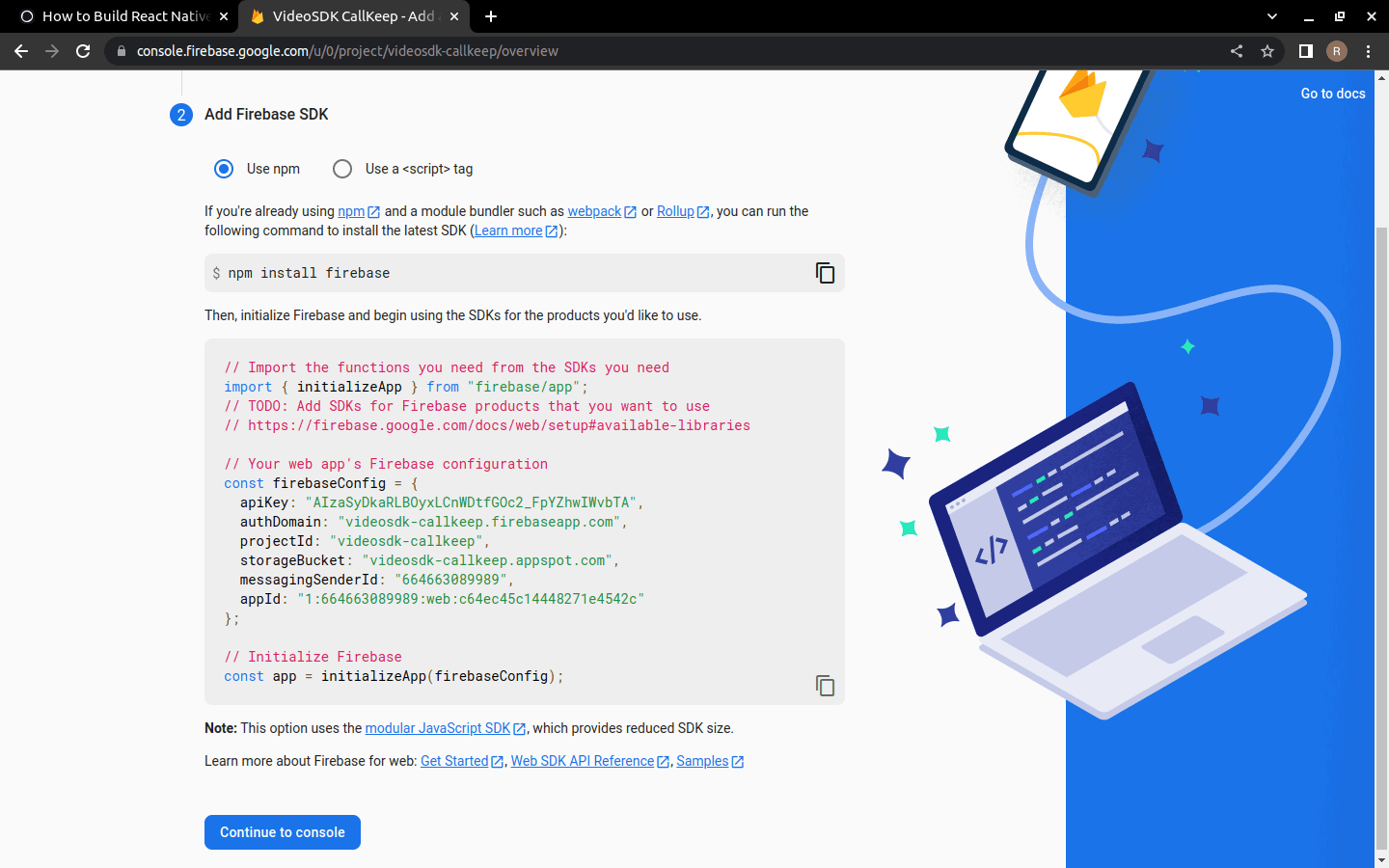

5. Follow the steps shown to add the Firebase SDK to your Android app.

6. Create a new web app in your Firebase project that will be used to access the Firebase database.

7. Add the configuration file shown in the database/firebaseDb.js file in your project.

Video SDK Image

8. Go to Firebase Firestore in the left panel and create a database, which we will use to store caller IDs.

9. With these, we are all set with Firebase on Android.

Server-Side Setup

Now that we have completed the setup for our app, Let us set up the server-side APIs as well. For creating these APIs, we will use Firebase functions. So let's get straight into it.

  1. Go to Firebase Functions in the left panel. To use Firebase functions, you will need to upgrade to a pay-as-you-go plan. Although there is no need to worry about charges if you are just building as a hobby project, there is a generous free quota available.
  2. Let's get started with Firebase functions by installing the Firebase CLI using the below command.
npm install -g firebase-tools

3. Β Run firebase login to log in via the browser and authenticate the Firebase CLI.

4. Β Go to your Firebase project directory.

5. Run firebase init functions to initialise the firebase functions project where we will write our APIs. Follow the setup instructions shown in the CLI, and once the process completes, you should see the functions folder created in your directory.

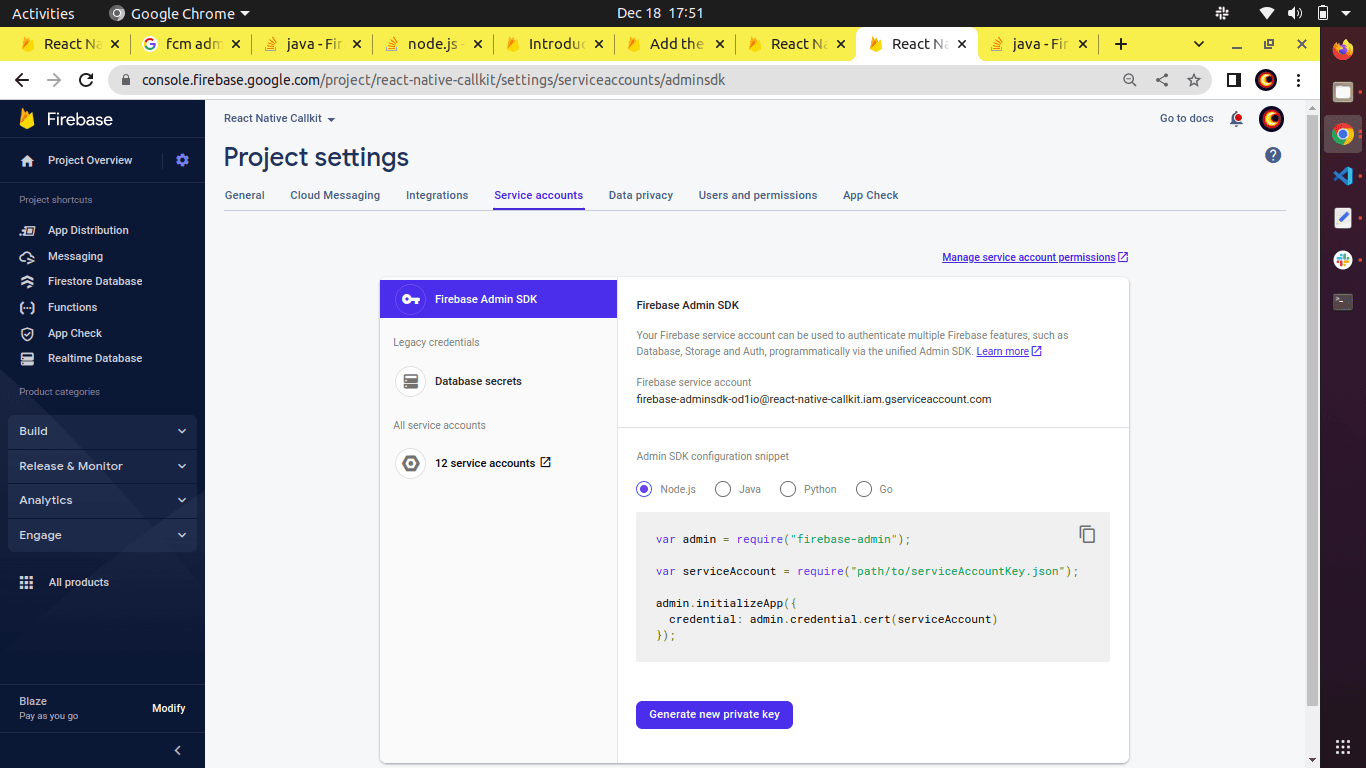

6. Download the service account key from the project settings and place it inside the functions/serviceAccountKey.json.

Video SDK Image

With these, we have completed the setup that we require to run our app.

App Side Programming

Let's hop on to start the code on the React Native side. We will be creating two screens, the first of which is where the user can see his Caller ID and enter the other person's Caller ID to initiate a new call.

We will be following the below-shown folder structure:

.
└── Root/
    β”œβ”€β”€ android
    β”œβ”€β”€ ios
    β”œβ”€β”€ src/
    β”‚   β”œβ”€β”€ api/
    β”‚   β”‚   └── api.js
    β”‚   β”œβ”€β”€ assets/
    β”‚   β”‚   └── Get it from our repository
    β”‚   β”œβ”€β”€ components/
    β”‚   β”‚   β”œβ”€β”€ Get it from our repository
    β”‚   β”œβ”€β”€ navigators/
    β”‚   β”‚   └── screenNames.js
    β”‚   β”œβ”€β”€ scenes/
    β”‚   β”‚   β”œβ”€β”€ home/
    β”‚   β”‚   β”‚   └── index.js
    β”‚   β”‚   └── meeting/
    β”‚   β”‚       β”œβ”€β”€ OneToOne/
    β”‚   β”‚       β”œβ”€β”€ index.js
    β”‚   β”‚       └── MeetingContainer.js
    β”‚   β”œβ”€β”€ styles/
    β”‚   β”‚   β”œβ”€β”€ Get it from our repository
    β”‚   └── utils/
    β”‚       └── incoming-video-call.js
    β”œβ”€β”€ App.js
    β”œβ”€β”€ index.js
    └── package.json

Let's get started with the basic UI of the call initiating screen.

  1. To give you a head start, we have already created the basic components we will need, like buttons, textfields, avatars, and icons. You can get direct access to all the icons and components from our GitHub repository.
  2. With our basic components setup, lets add Navigation screens to the app. We will have a Home screen which will have the caller ID input and a call button and a meeting screen which will have the video call.So update thesrc/navigators/screenNames.js file with the following screen names.
export const SCREEN_NAMES = {
  Home: "homescreen",
  Meeting: "meetingscreen",
};

3. Update the App.js file with the Navigation stack.

import React, { useEffect } from "react";
import "react-native-gesture-handler";
import { NavigationContainer } from "@react-navigation/native";
import { createStackNavigator } from "@react-navigation/stack";
import { SCREEN_NAMES } from "./src/navigators/screenNames";
import Meeting from "./src/scenes/meeting";
import { LogBox, Text, Alert } from "react-native";
import Home from "./src/scenes/home";
import RNCallKeep from "react-native-callkeep";
LogBox.ignoreLogs(["Warning: ..."]);
LogBox.ignoreAllLogs();

const { Navigator, Screen } = createStackNavigator();

const linking = {
  prefixes: ["videocalling://"],
  config: {
    screens: {
      meetingscreen: {
        path: `meetingscreen/:token/:meetingId`,
      },
    },
  },
};

export default function App() {

  return (
    <NavigationContainer linking={linking} fallback={<Text>Loading...</Text>}>
      <Navigator
        screenOptions={{
          animationEnabled: false,
          presentation: "modal",
        }}
        initialRouteName={SCREEN_NAMES.Home}
      >
        <Screen
          name={SCREEN_NAMES.Meeting}
          component={Meeting}
          options={{ headerShown: false }}
        />
        <Screen
          name={SCREEN_NAMES.Home}
          component={Home}
          options={{ headerShown: false }}
        />
      </Navigator>
    </NavigationContainer>
  );
}

4. With our Navigation stack ready, let us setup the home screen UI.
For which you have to update the src/scenes/home/index.js

import React, { useEffect, useState, useRef } from "react";
import {
  Platform, KeyboardAvoidingView, TouchableWithoutFeedback,
  Keyboard, View, Text, Clipboard, Alert, Linking,
} from "react-native";
import { TouchableOpacity } from "react-native-gesture-handler";
import { CallEnd, Copy } from "../../assets/icons";
import TextInputContainer from "../../components/TextInputContainer";
import colors from "../../styles/colors";
import firestore from "@react-native-firebase/firestore";
import messaging from "@react-native-firebase/messaging";
import Toast from "react-native-simple-toast";
import {
  updateCallStatus, initiateCall,
  getToken, createMeeting,
} from "../../api/api";
import { SCREEN_NAMES } from "../../navigators/screenNames";
import Incomingvideocall from "../../utils/incoming-video-call";

export default function Home({ navigation }) {

  //These is the number user will enter to make a call
  const [number, setNumber] = useState("");

  //These will store the detials of the users callerId and fcm token
  const [firebaseUserConfig, setfirebaseUserConfig] = useState(null);

  //Used to render the UI conditionally, whether the person on making a call or not
  const [isCalling, setisCalling] = useState(false);

  return (
    <KeyboardAvoidingView
      behavior={Platform.OS === "ios" ? "padding" : "height"}
      style={{
        flex: 1,
        backgroundColor: colors.primary["900"],
        justifyContent: "center",
        paddingHorizontal: 42,
      }}
    >
      {!isCalling ? (
        <TouchableWithoutFeedback onPress={Keyboard.dismiss}>
        {/*CALLER ID and Call Option UI*/}
        </TouchableWithoutFeedback>
      ) : (
        <View style={{ flex: 1, justifyContent: "space-around" }}>
          {/*OUT GOING CALL UI*/}
        </View>
      )}
    </KeyboardAvoidingView>
  );
}

With the states and bare screen setup, lets first add the UI where teh user will be able to see his caller ID and have the option to call other person.

{/*CALLER ID and Call Option UI*/}
<>
  <View
    style={{
      padding: 35,
      backgroundColor: "#1A1C22",
      justifyContent: "center",
      alignItems: "center",
      borderRadius: 14,
    }}
  >
    <Text
      style={{
        fontSize: 18,
        color: "#D0D4DD",
        fontFamily: ROBOTO_FONTS.Roboto,
      }}
    >
      Your Caller ID
    </Text>
    <View
      style={{
        flexDirection: "row",
        marginTop: 12,
        alignItems: "center",
      }}
    >
      <Text
        style={{
          fontSize: 32,
          color: "#ffff",
          letterSpacing: 8,
          fontFamily: ROBOTO_FONTS.Roboto,
        }}
      >
        {firebaseUserConfig
          ? firebaseUserConfig.callerId
          : "Loading.."}
      </Text>
      <TouchableOpacity
        style={{
          height: 30,
          aspectRatio: 1,
          backgroundColor: "#2B3034",
          marginLeft: 12,
          justifyContent: "center",
          alignItems: "center",
          borderRadius: 4,
        }}
        onPress={() => {
          Clipboard.setString(
            firebaseUserConfig && firebaseUserConfig.callerId
          );
          if (Platform.OS === "android") {
            Toast.show("Copied");
            Alert.alert(
              "Information",
              "This callerId will be unavailable, once you uninstall the App."
            );
          }
        }}
      >
        <Copy fill={colors.primary[100]} width={16} height={16} />
      </TouchableOpacity>
    </View>
  </View>

  <View
    style={{
      backgroundColor: "#1A1C22",
      padding: 40,
      marginTop: 25,
      justifyContent: "center",
      borderRadius: 14,
    }}
  >
    <Text
      style={{
        fontSize: 18,
        color: "#D0D4DD",
        fontFamily: ROBOTO_FONTS.Roboto,
      }}
    >
      Enter call id of another user
    </Text>
    <TextInputContainer
      placeholder={"Enter Caller ID"}
      value={number}
      setValue={setNumber}
      keyboardType={"number-pad"}
    />
    <TouchableOpacity
      onPress={async () => {
        if (number) {
          const data = await getCallee(number);
          if (data) {
            if (data.length === 0) {
              Toast.show("CallerId Does not Match");
            } else {
              Toast.show("CallerId Match!");
              const { token, platform, APN } = data[0]?.data();
              initiateCall({
                callerInfo: {
                  name: "Person A",
                  ...firebaseUserConfig,
                },
                calleeInfo: {
                  token,
                  platform,
                  APN,
                },
                videoSDKInfo: {
                  token: videosdkTokenRef.current,
                  meetingId: videosdkMeetingRef.current,
                },
              });
              setisCalling(true);
            }
          }
        } else {
          Toast.show("Please provide CallerId");
        }
      }}
      style={{
        height: 50,
        backgroundColor: "#5568FE",
        justifyContent: "center",
        alignItems: "center",
        borderRadius: 12,
        marginTop: 16,
      }}
    >
      <Text
        style={{
          fontSize: 16,
          color: "#FFFFFF",
        }}
      >
        Call Now
      </Text>
    </TouchableOpacity>
  </View>
</>

Now we will add the UI for Out going call which will show the Caller ID and end call option.

{/*OUT GOING CALL*/}
<View
  style={{
    padding: 35,
    justifyContent: "center",
    alignItems: "center",
    borderRadius: 14,
  }}
>
  <Text
    style={{
      fontSize: 16,
      color: "#D0D4DD",
      fontFamily: ROBOTO_FONTS.Roboto,
    }}
  >
    Calling to...
  </Text>

  <Text
    style={{
      fontSize: 36,
      marginTop: 12,
      color: "#ffff",
      letterSpacing: 8,
      fontFamily: ROBOTO_FONTS.Roboto,
    }}
  >
    {number}
  </Text>
</View>
<View
  style={{
    justifyContent: "center",
    alignItems: "center",
  }}
>
  <TouchableOpacity
    onPress={async () => {
      const data = await getCallee(number);
      if (data) {
        updateCallStatus({
          callerInfo: data[0]?.data(),
          type: "DISCONNECT",
        });
        setisCalling(false);
      }
    }}
    style={{
      backgroundColor: "#FF5D5D",
      borderRadius: 30,
      height: 60,
      aspectRatio: 1,
      justifyContent: "center",
      alignItems: "center",
    }}
  >
    <CallEnd width={50} height={12} />
  </TouchableOpacity>
</View>
Dont worry if you see error poping up, as we will be adding the methods soon.

You will come across following methods in the above code :

  • getCallee() : getCallee() is used to get the detials of the user you are trying to intiate a call with.
  • initiateCall() : initiateCall() is used to send a notification to the receiving user and start the call.
  • updateCallStatus() : updateCallStatus() is used to updated the status of the incoming call, like accepted, rejected etc.

5. With the UI for calling in place lets start with the actual calling development.

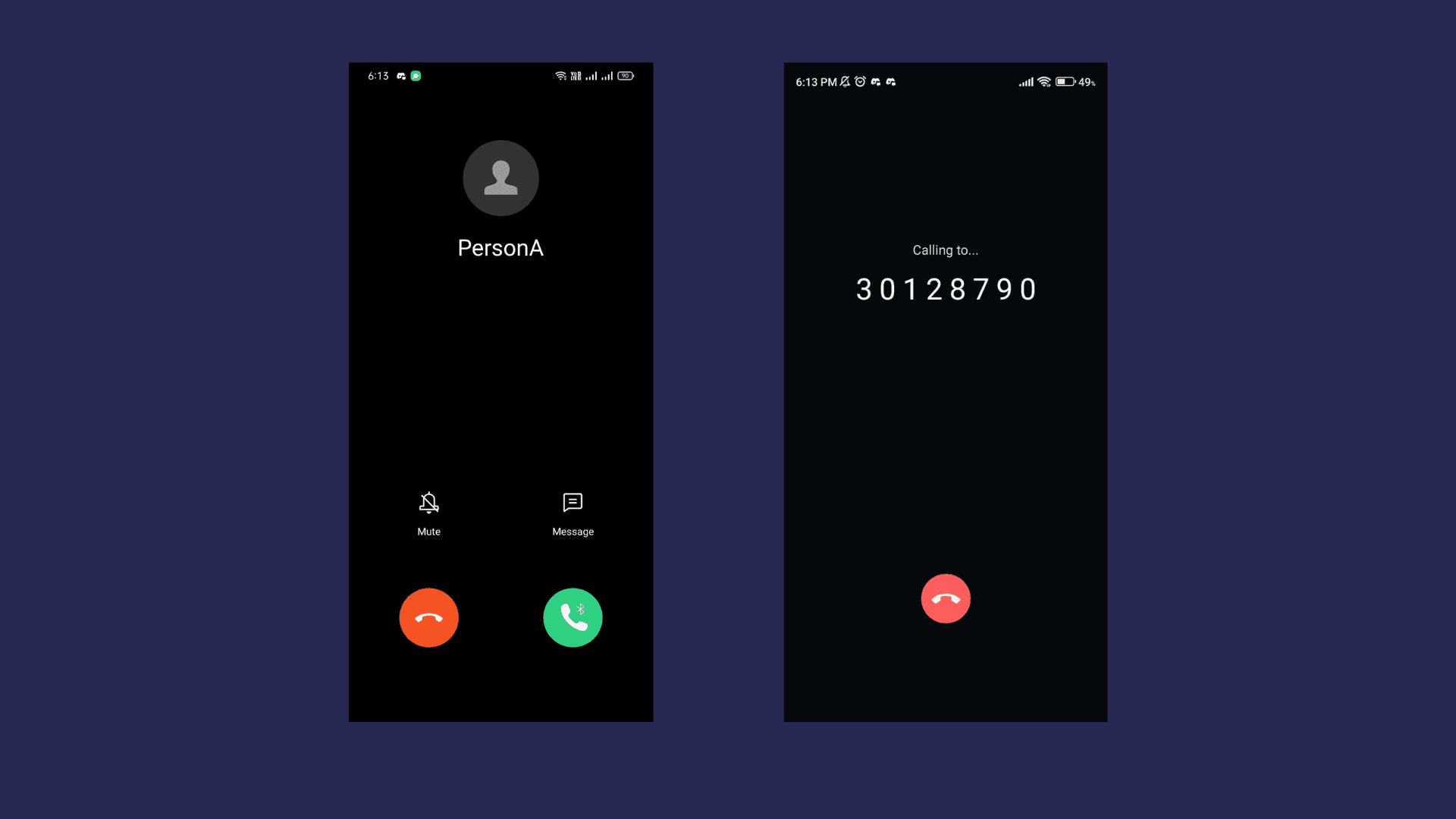

These is how the UI will look:

Video SDK Image

Firebase messaging to initiate calls

The first step into establishing the call is to identify each user and get the messaging token for the user, which will allow us to send them notifications.

  1. So on the home page of our app, we will get the Firebase Messaging Token. Using these tokens, we will query the Firestore database to see if the user is present in the database or not. If the user is present, we will update the firebaseUserConfig state in the app; otherwise, we will register the user in the database and update that state.
  useEffect(() => {
    async function getFCMtoken() {
      const authStatus = await messaging().requestPermission();
      const enabled =
        authStatus === messaging.AuthorizationStatus.AUTHORIZED ||
        authStatus === messaging.AuthorizationStatus.PROVISIONAL;

      if (enabled) {
        const token = await messaging().getToken();
        const querySnapshot = await firestore()
          .collection("users")
          .where("token", "==", token)
          .get();

        const uids = querySnapshot.docs.map((doc) => {
          if (doc && doc?.data()?.callerId) {
            const { token, platform, callerId } = doc?.data();
            setfirebaseUserConfig({
              callerId,
              token,
              platform,
            });
          }
          return doc;
        });

        if (uids && uids.length == 0) {
          addUser({ token });
        } else {
          console.log("Token Found");
        }
      }
    }

    getFCMtoken();
  }, []);

const addUser = ({ token }) => {
    const platform = Platform.OS === "android" ? "ANDROID" : "iOS";
    const obj = {
      callerId: Math.floor(10000000 + Math.random() * 90000000).toString(),
      token,
      platform,
    };
    firestore()
      .collection("users")
      .add(obj)
      .then(() => {
        setfirebaseUserConfig(obj);
        console.log("User added!");
      });
  };

2. We will setup the VideoSDK token and Meeting ID when the home screen loads so that we have them ready when the user wants to start the call.


  const [videosdkToken, setVideosdkToken] = useState(null);
  const [videosdkMeeting, setVideosdkMeeting] = useState(null);

  const videosdkTokenRef = useRef();
  const videosdkMeetingRef = useRef();
  videosdkTokenRef.current = videosdkToken;
  videosdkMeetingRef.current = videosdkMeeting;

  useEffect(() => {
    async function getTokenAndMeetingId() {
      const videoSDKtoken = getToken();
      const videoSDKMeetingId = await createMeeting({
      	token: videoSDKtoken
      });
      setVideosdkToken(videoSDKtoken);
      setVideosdkMeeting(videoSDKMeetingId);
    }
    getTokenAndMeetingId();
  }, []);

3. We have to create the getToken() and createMeeting() used in the above step in the src/api/api.js file.

const API_BASE_URL = "https://api.videosdk.live/v2";
const VIDEOSDK_TOKEN = "UPDATE YOUR VIDEOSDK TOKEN HERE WHICH YOU GENERATED FROM DASHBOARD ";

export const getToken = () => {
  return VIDEOSDK_TOKEN;
};

export const createMeeting = async ({ token }) => {
  const url = `${API_BASE_URL}/rooms`;
  const options = {
    method: "POST",
    headers: { Authorization: token, "Content-Type": "application/json" },
  };

  const { roomId } = await fetch(url, options)
    .then((response) => response.json())
    .catch((error) => console.error("error", error));

  return roomId;
};

4. The next step is to initiate the call. And to achieve that, we will have to create two APIs as Firebase functions that will trigger notifications on the other device and update the status of the call, whether it was rejected or accepted.

Start by updating functions and index.js with the basic Express server setup.

const functions = require("firebase-functions");
const express = require("express");
const cors = require("cors");
const morgan = require("morgan");
var fcm = require("fcm-notification");
var FCM = new fcm("./serviceAccountKey.json");
const app = express();
const { v4: uuidv4 } = require("uuid");

app.use(cors());
app.use(express.json());
app.use(express.urlencoded({ extended: true }));
app.use(morgan("dev"));

//

app.get("/", (req, res) => {
  res.send("Hello World!");
});

app.listen(9000, () => {
  console.log(`API server listening at http://localhost:9000`);
});

exports.app = functions.https.onRequest(app);
  • The first API we need is initiate-call, which will be used to send a notification to the receiving user and start the call by sending details like caller information and VideoSDK room details.
app.post("/initiate-call", (req, res) => {
  const { calleeInfo, callerInfo, videoSDKInfo } = req.body;

  if (calleeInfo.platform === "ANDROID") {
    var FCMtoken = calleeInfo.token;
    const info = JSON.stringify({
      callerInfo,
      videoSDKInfo,
      type: "CALL_INITIATED",
    });
    var message = {
      data: {
        info,
      },
      android: {
        priority: "high",
      },
      token: FCMtoken,
    };
    FCM.send(message, function (err, response) {
      if (err) {
        res.status(200).send(response);
      } else {
        res.status(400).send(response);
      }
    });
  } else {
    res.status(400).send("Not supported platform");
  }
});
  • Second API which we need is update-call which will update the status of the incoming call, like accepted, rejected etc and send the notification to the caller.
app.post("/update-call", (req, res) => {
  const { callerInfo, type } = req.body;
  const info = JSON.stringify({
    callerInfo,
    type,
  });

  var message = {
    data: {
      info,
    },
    apns: {
      headers: {
        "apns-priority": "10",
      },
      payload: {
        aps: {
          badge: 1,
        },
      },
    },
    token: callerInfo.token,
  };

  FCM.send(message, function (err, response) {
    if (err) {
      res.status(200).send(response);
    } else {
      res.status(400).send(response);
    }
  });
});

5. Now that the APIs are created we will trigger them from the app. Update the src/api/api.js with following API calls.

Here the FCM_SERVER_URL needs to be updated with the URL of your firebase functions.

You will get these when you deploy the functions or when you run the functions in a local environement using npm run serve

const FCM_SERVER_URL = "YOUR_FCM_URL";

export const initiateCall = async ({
  callerInfo,
  calleeInfo,
  videoSDKInfo,
}) => {
  await fetch(`${FCM_SERVER_URL}/initiate-call`, {
    method: "POST",
    headers: { "Content-Type": "application/json" },
    body: JSON.stringify({
      callerInfo,
      calleeInfo,
      videoSDKInfo,
    }),
  })
    .then((response) => {
      console.log(" RESP", response);
    })
    .catch((error) => console.error("error", error));
};

export const updateCallStatus = async ({ callerInfo, type }) => {
  await fetch(`${FCM_SERVER_URL}/update-call`, {
    method: "POST",
    headers: { "Content-Type": "application/json" },
    body: JSON.stringify({
      callerInfo,
      type,
    }),
  })
    .then((response) => {
      console.log("##RESP", response);
    })
    .catch((error) => console.error("error", error));
};

6. The notification send is now configured.Now we will have to invoke the call when you receive the notification; this is where the React-Native Call Keep comes into play.

Integration of Call-Keep Services

  1. Before initiating the call, we will have to ask for a few permissions and also setup the React-Native Call Keep. In order to do so, update the App.js with the following code:
  useEffect(() => {
    const options = {
      ios: {
        appName: "VideoSDK",
      },
      android: {
        alertTitle: "Permissions required",
        alertDescription:
          "This application needs to access your phone accounts",
        cancelButton: "Cancel",
        okButton: "ok",
        imageName: "phone_account_icon",
      },
    };
    RNCallKeep.setup(options);
    RNCallKeep.setAvailable(true);

    if (Platform.OS === "android") {
      OverlayPermissionModule.requestOverlayPermission();
    }
  }, []);

These will ask for the overlay permissions for the Android devices and also setup the CallKeep library. Here is the reference for how to grant these permissions.

2. You might remember that we had setup the app to send message notifications but did not add any listeners for those notifications. So let's add those listeners and show the Call UI when the notification is received.

Update the utils/incoming-video-call.js file, which will handle all the functionalities related to the incoming call.

import { Platform } from "react-native";
import RNCallKeep from "react-native-callkeep";
import uuid from "react-native-uuid";

class IncomingCall {
  constructor() {
    this.currentCallId = null;
  }

  configure = (incomingcallAnswer, endIncomingCall) => {
    try {
      this.setupCallKeep();
      Platform.OS === "android" && RNCallKeep.setAvailable(true);
      RNCallKeep.addEventListener("answerCall", incomingcallAnswer);
      RNCallKeep.addEventListener("endCall", endIncomingCall);
    } catch (error) {
      console.error("initializeCallKeep error:", error?.message);
    }
  };

  //These emthod will setup the call keep.
  setupCallKeep = () => {
    try {
      RNCallKeep.setup({
        ios: {
          appName: "VideoSDK",
          supportsVideo: false,
          maximumCallGroups: "1",
          maximumCallsPerCallGroup: "1",
        },
        android: {
          alertTitle: "Permissions required",
          alertDescription:
            "This application needs to access your phone accounts",
          cancelButton: "Cancel",
          okButton: "Ok",
        },
      });
    } catch (error) {
      console.error("initializeCallKeep error:", error?.message);
    }
  };

  // Use startCall to ask the system to start a call - Initiate an outgoing call from this point
  startCall = ({ handle, localizedCallerName }) => {
    // Your normal start call action
    RNCallKeep.startCall(this.getCurrentCallId(), handle, localizedCallerName);
  };

  reportEndCallWithUUID = (callUUID, reason) => {
    RNCallKeep.reportEndCallWithUUID(callUUID, reason);
  };

  //These method will end the incoming call
  endIncomingcallAnswer = () => {
    RNCallKeep.endCall(this.currentCallId);
    this.currentCallId = null;
    this.removeEvents();
  };

  //These method will remove all the event listeners
  removeEvents = () => {
    RNCallKeep.removeEventListener("answerCall");
    RNCallKeep.removeEventListener("endCall");
  };

  //These method will display the incoming call
  displayIncomingCall = (callerName) => {
    Platform.OS === "android" && RNCallKeep.setAvailable(false);
    RNCallKeep.displayIncomingCall(
      this.getCurrentCallId(),
      callerName,
      callerName,
      "number",
      true,
      null
    );
  };

  //Bring the app to foreground
  backToForeground = () => {
    RNCallKeep.backToForeground();
  };

  //Return the ID of current Call
  getCurrentCallId = () => {
    if (!this.currentCallId) {
      this.currentCallId = uuid.v4();
    }
    return this.currentCallId;
  };

  //These Method will end the call
  endAllCall = () => {
    RNCallKeep.endAllCalls();
    this.currentCallId = null;
    this.removeEvents();
  };

}

export default Incomingvideocall = new IncomingCall();
Note: Check the code comments to learn about the function of each method.

3. We have to add the notification listener on the firebase with which we will invoke the CallKeep to handle the Call UI, which we can to by adding following code in the src/home/index.js


  useEffect(() => {
    const unsubscribe = messaging().onMessage((remoteMessage) => {
      const { callerInfo, videoSDKInfo, type } = JSON.parse(
        remoteMessage.data.info
      );
      switch (type) {
        case "CALL_INITIATED":
          const incomingCallAnswer = ({ callUUID }) => {
            updateCallStatus({
              callerInfo,
              type: "ACCEPTED",
            });
            Incomingvideocall.endIncomingcallAnswer(callUUID);
            setisCalling(false);
            Linking.openURL(
              `videocalling://meetingscreen/${videoSDKInfo.token}/${videoSDKInfo.meetingId}`
            ).catch((err) => {
              Toast.show(`Error`, err);
            });
          };

          const endIncomingCall = () => {
            Incomingvideocall.endIncomingcallAnswer();
            updateCallStatus({ callerInfo, type: "REJECTED" });
          };

          Incomingvideocall.configure(incomingCallAnswer, endIncomingCall);
          Incomingvideocall.displayIncomingCall(callerInfo.name);

          break;
        case "ACCEPTED":
          setisCalling(false);
          navigation.navigate(SCREEN_NAMES.Meeting, {
            name: "Person B",
            token: videosdkTokenRef.current,
            meetingId: videosdkMeetingRef.current,
          });
          break;
        case "REJECTED":
          Toast.show("Call Rejected");
          setisCalling(false);
          break;
        case "DISCONNECT":
          Platform.OS === "ios"
            ? Incomingvideocall.endAllCall()
            : Incomingvideocall.endIncomingcallAnswer();
          break;
        default:
          Toast.show("Call Could not placed");
      }
    });

    return () => {
      unsubscribe();
    };
  }, []);

 //Used to get the detials of the user you are trying to intiate a call with.
  const getCallee = async (num) => {
    const querySnapshot = await firestore()
      .collection("users")
      .where("callerId", "==", num.toString())
      .get();
    return querySnapshot.docs.map((doc) => {
      return doc;
    });
  };

4. After adding the above code, you might observe that when the app is in the foreground, the call UI works as expected but not when the app is in the background. So to handle the case in background mode, we will have to add a background listener for the notifications. In order to add the listener, add the below-mentioned code in the index.js file of your project.


const firebaseListener = async (remoteMessage) => {
  const { callerInfo, videoSDKInfo, type } = JSON.parse(
    remoteMessage.data.info
  );

  if (type === "CALL_INITIATED") {
    const incomingCallAnswer = ({ callUUID }) => {
      Incomingvideocall.backToForeground();
      updateCallStatus({
        callerInfo,
        type: "ACCEPTED",
      });
      Incomingvideocall.endIncomingcallAnswer(callUUID);
      Linking.openURL(
        `videocalling://meetingscreen/${videoSDKInfo.token}/${videoSDKInfo.meetingId}`
      ).catch((err) => {
        Toast.show(`Error`, err);
      });
    };

    const endIncomingCall = () => {
      Incomingvideocall.endIncomingcallAnswer();
      updateCallStatus({ callerInfo, type: "REJECTED" });
    };

    Incomingvideocall.configure(incomingCallAnswer, endIncomingCall);
    Incomingvideocall.displayIncomingCall(callerInfo.name);
    Incomingvideocall.backToForeground();
  }
};

// Register background handler
messaging().setBackgroundMessageHandler(firebaseListener);

Here how the incoming and outgoing call will look like:

Video SDK Image
Wow!! You just implemented the calling feature, which works like a charm.
But without video call, it still feels incomplete. Well, for that, we have VideoSDK, which we will implement in the upcoming steps.

VideoSDK Integration

  1. We will be showing the video call on the meeting screen that we created earlier. These screens will have the room section created before the meeting is joined, and after that, it will have the remote participant in the large view and the local participant in the mini-view. We will have three buttons to toggle the mic, toggle the webcam, and leave the call.
.
└── scenes/
    β”œβ”€β”€ home/
    └── meeting/
        β”œβ”€β”€ OneToOne/
        β”‚   β”œβ”€β”€ LargeView/
        β”‚   β”‚   └── index.js
        β”‚   β”œβ”€β”€ MiniView/
        β”‚   β”‚   └── index.js
        β”‚   └── index.js
        β”œβ”€β”€ index.js
        └── MeetingContainer.js

2. Β First step in integrating the VideoSDK is adding the MeetingProvider in the src/scene/meeting/index.js which will initate the meeting and join it.

import React from "react";
import { Platform, SafeAreaView } from "react-native";
import colors from "../../styles/colors";
import {
  MeetingConsumer,
  MeetingProvider,
} from "@videosdk.live/react-native-sdk";
import MeetingContainer from "./MeetingContainer";
import { SCREEN_NAMES } from "../../navigators/screenNames";
import IncomingVideoCall from "../../utils/incoming-video-call";

export default function ({ navigation, route }) {
  const token = route.params.token;
  const meetingId = route.params.meetingId;
  const micEnabled = route.params.micEnabled ? route.params.micEnabled : true;
  const webcamEnabled = route.params.webcamEnabled
    ? route.params.webcamEnabled
    : true;
  const name = route.params.name;

  return (
    <SafeAreaView
      style={{ flex: 1, backgroundColor: colors.primary[900], padding: 12 }}
    >
      <MeetingProvider
        config={{
          meetingId: meetingId,
          micEnabled: micEnabled,
          webcamEnabled: webcamEnabled,
          name: name,
          notification: {
            title: "Video SDK Meeting",
            message: "Meeting is running.",
          },
        }}
        token={token}
      >
        <MeetingConsumer
          {...{
            onMeetingLeft: () => {
              Platform.OS == "ios" && IncomingVideoCall.endAllCall();
              navigation.navigate(SCREEN_NAMES.Home);
            },
          }}
        >
          {() => {
            return <MeetingContainer webcamEnabled={webcamEnabled} />;
          }}
        </MeetingConsumer>
      </MeetingProvider>
    </SafeAreaView>
  );
}

3. We used the MeetingContainer Component which will hold the different layouts for our meeting like showing Waiting to Join before the meeting is joined and also the complete meeting view once the meeting is joined

import {
  useMeeting,
  ReactNativeForegroundService,
} from "@videosdk.live/react-native-sdk";
import { useEffect, useState } from "react";
import OneToOneMeetingViewer from "./OneToOne";
import WaitingToJoinView from "./Components/WaitingToJoinView";
import React from "react";
import { convertRFValue } from "../../../styles/spacing";
import { Text, View } from "react-native";
import colors from "../../../styles/colors";


export default function MeetingContainer({ webcamEnabled }) {
  const [isJoined, setJoined] = useState(false);

  const { join, changeWebcam, participants, leave } = useMeeting({
    onMeetingJoined: () => {
      setTimeout(() => {
        setJoined(true);
      }, 500);
    },
  });

  useEffect(() => {
    setTimeout(() => {
      if (!isJoined) {
        join();
        if (webcamEnabled) changeWebcam();
      }
    }, 1000);

    return () => {
      leave();
      ReactNativeForegroundService.stopAll();
    };
  }, []);

  return isJoined ? (
    <OneToOneMeetingViewer />
  ) : (
    <View
      style={{
        flexDirection: "column",
        justifyContent: "center",
        alignItems: "center",
        height: "100%",
        width: "100%",
      }}
    >
      <Text
        style={{
          fontSize: convertRFValue(18),
          color: colors.primary[100],
          marginTop: 28,
        }}
      >
        Creating a room
      </Text>
    </View>
  );
}

4. Next we will add our MeetingView which will show the buttons and Participants View in the src/scenes/meeting/OneToOne/index.js

import React from "react";
import {
  View, Text,Clipboard, TouchableOpacity, ActivityIndicator,
} from "react-native";
import { useMeeting } from "@videosdk.live/react-native-sdk";
import {
	CallEnd, CameraSwitch, Copy, MicOff, MicOn, VideoOff, VideoOn,
} from "../../../assets/icons";
import colors from "../../../styles/colors";
import IconContainer from "../../../components/IconContainer";
import LocalViewContainer from "./LocalViewContainer";
import LargeView from "./LargeView";
import MiniView from "./MiniView";
import Toast from "react-native-simple-toast";

export default function OneToOneMeetingViewer() {
  const {
    participants,
    localWebcamOn,
    localMicOn,
    leave,
    changeWebcam,
    toggleWebcam,
    toggleMic,
    meetingId,
  } = useMeeting({
    onError: (data) => {
      const { code, message } = data;
      Toast.show(`Error: ${code}: ${message}`);
    },
  });

  const participantIds = [...participants.keys()];

  const participantCount = participantIds ? participantIds.length : null;

  return (
    <>
      <View
        style={{
          flexDirection: "row",
          alignItems: "center",
          width: "100%",
        }}
      >
        <View
          style={{
            flex: 1,
            justifyContent: "space-between",
          }}
        >
          <View style={{ flexDirection: "row" }}>
            <Text
              style={{
                fontSize: 16,
                color: colors.primary[100],
              }}
            >
              {meetingId ? meetingId : "xxx - xxx - xxx"}
            </Text>

            <TouchableOpacity
              style={{
                justifyContent: "center",
                marginLeft: 10,
              }}
              onPress={() => {
                Clipboard.setString(meetingId);
                Toast.show("Meeting Id copied Successfully");
              }}
            >
              <Copy fill={colors.primary[100]} width={18} height={18} />
            </TouchableOpacity>
          </View>
        </View>
        <View>
          <TouchableOpacity
            onPress={() => {
              changeWebcam();
            }}
          >
            <CameraSwitch height={26} width={26} fill={colors.primary[100]} />
          </TouchableOpacity>
        </View>
      </View>
      {/* Center */}
      <View style={{ flex: 1, marginTop: 8, marginBottom: 12 }}>
        {participantCount > 1 ? (
          <>
            <LargeView participantId={participantIds[1]} />
            <MiniView participantId={participantIds[0]} />
          </>
        ) : participantCount === 1 ? (
          <LargeView participantId={participantIds[0]} />
        ) : (
          <View
            style={{ flex: 1, justifyContent: "center", alignItems: "center" }}
          >
            <ActivityIndicator size={"large"} />
          </View>
        )}
      </View>
      {/* Bottom */}
      <View
        style={{
          flexDirection: "row",
          justifyContent: "space-evenly",
        }}
      >
        <IconContainer
          backgroundColor={"red"}
          onPress={() => {
            leave();
          }}
          Icon={() => {
            return <CallEnd height={26} width={26} fill="#FFF" />;
          }}
        />
        <IconContainer
          style={{
            borderWidth: 1.5,
            borderColor: "#2B3034",
          }}
          backgroundColor={!localMicOn ? colors.primary[100] : "transparent"}
          onPress={() => {
            toggleMic();
          }}
          Icon={() => {
            return localMicOn ? (
              <MicOn height={24} width={24} fill="#FFF" />
            ) : (
              <MicOff height={28} width={28} fill="#1D2939" />
            );
          }}
        />
        <IconContainer
          style={{
            borderWidth: 1.5,
            borderColor: "#2B3034",
          }}
          backgroundColor={!localWebcamOn ? colors.primary[100] : "transparent"}
          onPress={() => {
            toggleWebcam();
          }}
          Icon={() => {
            return localWebcamOn ? (
              <VideoOn height={24} width={24} fill="#FFF" />
            ) : (
              <VideoOff height={36} width={36} fill="#1D2939" />
            );
          }}
        />
      </View>
    </>
  );
}

5. Here we are showing the participants in two different views, first, if there is one participant we will show the local participant in the full screen and second, when there are two participants, we will show the local participant in the MiniView.

To achieve these, you need to following two components:

a. src/scenes/meeting/OneToOne/LargeView/index.js

import { useParticipant, RTCView, MediaStream } from "@videosdk.live/react-native-sdk";
import React, { useEffect } from "react";
import { View } from "react-native";
import colors from "../../../../styles/colors";
import Avatar from "../../../../components/Avatar";

export default LargeViewContainer = ({ participantId }) => {
  const { webcamOn, webcamStream, displayName, setQuality, isLocal } =
    useParticipant(participantId, {});

  useEffect(() => {
    setQuality("high");
  }, []);

  return (
    <View
      style={{
        flex: 1,
        backgroundColor: colors.primary[800],
        borderRadius: 12,
        overflow: "hidden",
      }}
    >
      {webcamOn && webcamStream ? (
        <RTCView
          objectFit={'cover'}
          mirror={isLocal ? true : false}
          style={{ flex: 1, backgroundColor: "#424242" }}
          streamURL={new MediaStream([webcamStream.track]).toURL()}
        />
      ) : (
        <Avatar
          containerBackgroundColor={colors.primary[800]}
          fullName={displayName}
          fontSize={26}
          style={{
            backgroundColor: colors.primary[700],
            height: 70,
            aspectRatio: 1,
            borderRadius: 40,
          }}
        />
      )}
    </View>
  );
};

a. src/scenes/meeting/OneToOne/MiniView/index.js

import { useParticipant, RTCView, MediaStream } from "@videosdk.live/react-native-sdk";
import React, { useEffect } from "react";
import { View } from "react-native";
import Avatar from "../../../../components/Avatar";
import colors from "../../../../styles/colors";

export default MiniViewContainer = ({ participantId }) => {
  const { webcamOn, webcamStream, displayName, setQuality, isLocal } =
    useParticipant(participantId, {});

  useEffect(() => {
    setQuality("high");
  }, []);

  return (
    <View
      style={{
        position: "absolute",
        bottom: 10,
        right: 10,
        height: 160,
        aspectRatio: 0.7,
        borderRadius: 8,
        borderColor: "#ff0000",
        overflow: "hidden",
      }}
    >
      {webcamOn && webcamStream ? (
        <RTCView
          objectFit="cover"
          zOrder={1}
          mirror={isLocal ? true : false}
          style={{ flex: 1, backgroundColor: "#424242" }}
          streamURL={new MediaStream([webcamStream.track]).toURL()}
        />
      ) : (
        <Avatar
          fullName={displayName}
          containerBackgroundColor={colors.primary[600]}
          fontSize={24}
          style={{
            backgroundColor: colors.primary[500],
            height: 60,
            aspectRatio: 1,
            borderRadius: 40,
          }}
        />
      )}
    </View>
  );
};

Here is how the video call will look with two participants:

Video SDK Image
Hurray!!! With these, our video calling feature is complete. Here is a video of how it looks.

Head over to the second part of the series to see how you can configure the iOS to receive the calls and initiate the video call.

Conclusion

With this, we successfully built the React Native video calling app with Callkeep using the video SDK and Firebase. You can always refer to our documentation if you want to add features like chat messaging and screen sharing. If you have any problems with the implementation, please contact us via our Discord community.
