Use WebSocket when you need reliable, ordered, server-mediated messaging such as chat, notifications, and dashboards. Use WebRTC DataChannel when you need sub-100ms peer-to-peer data delivery where occasional packet loss is acceptable, such as multiplayer games and media transport. Use both together when your app needs a central control channel plus high-frequency direct data, which is how most production real-time systems are built. The most common mistake is treating them as interchangeable, because their transport foundations, TCP versus UDP, produce fundamentally different latency behavior.
Every real-time application eventually hits the same fork in the road: should your data travel over a WebSocket, or should it flow through a WebRTC DataChannel? The choice looks subtle on the surface, since both let you push messages between a browser and somewhere else without polling. But underneath, they rest on entirely different transport foundations, and those foundations determine your latency ceiling, your reliability guarantees, your infrastructure bill, and how your app behaves when the network degrades.
The distinction matters most at scale. A multiplayer game that routes every player input through a central WebSocket server pays for server bandwidth on every message and inherits TCP retransmission delays. A chat application that tries to run entirely over peer-to-peer DataChannels inherits NAT traversal headaches and loses the natural place to persist message history. Neither choice is wrong in isolation, but each is wrong for the other's job.
This comparison breaks down how each protocol works, where each one wins, and how production teams combine them. By the end, you will have a decision framework you can apply to your own use case, whether you are building chat, gaming, telemetry, or interactive streaming.
What Is WebSocket?
WebSocket is defined as a persistent, bidirectional communication channel between a client and a server, established over a single TCP connection. It works by starting as an ordinary HTTP request that asks the server to upgrade the connection, and once the server agrees, the HTTP layer steps aside and both sides can push messages at any time without the overhead of repeated request headers.
Because it rides on TCP, WebSocket inherits everything TCP guarantees: every byte arrives, arrives once, and arrives in the order it was sent. It also inherits TCP's congestion control, which throttles sending speed when the network between the endpoints gets congested.
Core Mechanics and TCP Foundation
The WebSocket lifecycle begins with an HTTP upgrade handshake. The client sends a normal HTTP request with special headers indicating it wants a WebSocket connection, the server responds with an acceptance, and from that point the connection stays open. There is no per-message handshake cost, which is exactly why WebSocket feels instant compared to polling.
The TCP foundation is the defining characteristic. Ordered delivery means message three never arrives before message two. Built-in retransmission means a lost packet is detected and resent automatically. Congestion control means the connection adapts its sending rate to network conditions. These are strong guarantees, and they come with a latency cost that we will examine in the comparison section.
Strengths and Typical Use Cases
WebSocket's reliability and simplicity make it the default choice for server-centric real-time features. Because every message passes through your server, you get a natural point for authentication, persistence, moderation, and business logic. A chat message that passes through your backend can be stored, filtered, and fanned out to thousands of connected clients.
Typical scenarios include live chat applications, notification delivery, collaborative document editing, live dashboards showing metrics or stock ticks, and presence systems that track who is online. In all of these, losing a message is worse than delaying it, and the server needs to see the traffic anyway. That is the WebSocket sweet spot.
What Is WebRTC DataChannel?
The WebRTC DataChannel is defined as a peer-to-peer data transport built into browsers and native WebRTC stacks, designed to carry arbitrary data directly between two endpoints. It works by negotiating a direct connection between peers, using UDP as the underlying transport, with an SCTP-based protocol layered over DTLS encryption running on top.
The SCTP layer is what makes DataChannel unusually flexible. Unlike TCP, SCTP lets the developer choose per-channel behavior: messages can be delivered reliably or unreliably, ordered or unordered. You can open a channel that drops stale data instead of retransmitting it, which is exactly what latency-sensitive applications want.
UDP Foundation and SCTP Layer
DataChannel sits on UDP, which makes no delivery promises. If a packet is lost, UDP does not retransmit it, does not notice, and does not care. The SCTP layer on top can optionally add reliability and ordering, but critically, it can also be configured to skip both. A game can mark player position updates as unordered and partially reliable, so a dropped packet carrying an old position is simply ignored in favor of the next, fresher update.
DTLS provides mandatory encryption on every DataChannel, so unlike raw UDP, all data is encrypted by default without any extra configuration. The connection setup, however, requires signaling, ICE candidate exchange, and usually STUN or TURN servers to punch through NATs and firewalls, which adds complexity WebSocket simply does not have.
Strengths and Typical Use Cases
DataChannel's strength is low-latency direct delivery. Because data flows peer to peer, it never transits your servers, which means lower latency and zero bandwidth cost on your infrastructure for the data itself. For two-party scenarios, this is a decisive advantage.
Typical scenarios include video and audio calling (where DataChannel often carries chat or control messages alongside media streams), multiplayer games with small player counts, direct peer-to-peer file sharing, remote desktop control, and interactive live streaming where audience members exchange data directly. Platforms like VideoSDK build on this foundation, letting developers embed real-time video, audio, and data communication across React, Flutter, Android, iOS, and other SDKs without managing the underlying peer connection plumbing themselves, as described in the VideoSDK quickstart documentation.
WebSocket vs WebRTC DataChannel: Direct Comparison
The WebSocket vs WebRTC DataChannel decision comes down to three dimensions: latency behavior, delivery guarantees, and where the traffic flows. Each dimension traces directly back to the TCP-versus-UDP foundation.
Latency and Head-of-Line Blocking
TCP's retransmission creates a problem called head-of-line blocking. When packet three is lost, TCP holds packets four, five, and six until packet three is retransmitted and confirmed. Every subsequent message waits for the lost one, so a single dropped packet stalls the entire stream. On a lossy mobile network, this manifests as sudden multi-hundred-millisecond freezes in a chat or game feed.
DataChannel over UDP has no such stall. A lost datagram is simply gone, and the next message arrives immediately. For state that is continuously refreshed, like player positions or live sensor readings, losing an old update is harmless because a newer one arrives moments later. This is why latency-critical systems consistently prefer UDP-based transports. For a deeper technical treatment of these trade-offs, the W3C WebRTC specification documents the DataChannel reliability and ordering model in detail.
Reliability and Ordering Guarantees
WebSocket guarantees ordered, reliable delivery on every message, always. DataChannel lets you choose: reliable and ordered, reliable and unordered, partially reliable with a retransmission limit, or fully unreliable and unordered. That configurability is a genuine advantage, but it is also a responsibility, because you must decide per message type what guarantee it needs.
Ordered delivery is beneficial when messages depend on each other, such as a sequence of edits to a document or a financial transaction stream. Unordered delivery is beneficial when each message is self-contained and freshness matters more than completeness, such as telemetry or position updates.
Scalability and Server Load
WebSocket is a client-server topology. Every byte of every message transits your infrastructure, so your server bandwidth and connection capacity scale linearly with total message volume. A system with 50,000 connected clients exchanging frequent messages needs serious server capacity, and that cost never goes away.
WebRTC DataChannel is peer-to-peer. Data flows directly between endpoints, so your servers only handle signaling and NAT traversal setup, not the ongoing traffic. For two-party and small-group scenarios, this dramatically cuts infrastructure cost. The trade-off is that large groups still need a media or data server, typically an SFU (Selective Forwarding Unit), because full mesh peer-to-peer breaks down past a handful of participants. VideoSDK's room-based architecture handles this automatically, routing streams through an SFU so participants join a VideoSDK room and share media without developers managing mesh topology limits.
Choosing the Right Protocol for Your Application
Choosing between WebSocket and DataChannel is a matter of matching transport properties to message semantics. Ask three questions: does every message matter, how fresh does the latest message need to be, and does the server need to see the traffic?
Decision Matrix
| Criterion | WebSocket | WebRTC DataChannel | Winner |
|---|---|---|---|
| Latency under packet loss | Stalls on retransmission | Skips lost packets | DataChannel |
| Delivery guarantees | Always reliable and ordered | Configurable per channel | Depends on use case |
| Topology | Client-server | Peer-to-peer or SFU | Depends on use case |
| Server bandwidth cost | Scales with message volume | Signaling only (P2P) | DataChannel for small groups |
| Setup complexity | Simple HTTP upgrade | Signaling, ICE, STUN/TURN | WebSocket |
| Message persistence | Natural, server sees all | Requires extra relay design | WebSocket |
| Browser support | Universal | Universal in modern browsers | Tie |
[LINKABLE ASSET — comparison table]
The most important row is delivery guarantees. If your application cannot tolerate a lost message, WebSocket's always-on reliability removes an entire class of bugs, and no configuration discipline on your team can fully replace it.
Scenario Examples
For a real-time chat application, WebSocket wins. Messages must never be lost or arrive out of order, the server needs to persist and moderate them, and a few hundred milliseconds of latency is invisible in conversation.
For a fast-paced multiplayer game with four players, DataChannel wins. Player inputs and positions need to arrive as fresh as possible, stale updates are worthless, and peer-to-peer delivery keeps server costs near zero.
For live streaming with audience interaction, a hybrid wins. Use WebSocket for chat, polls, and Q&A moderation flowing through your backend, and use a real-time SDK for the low-latency media layer. VideoSDK's interactive live streaming mode is built exactly for this, keeping audience interaction sub-second while chat and moderation run server-side.
For IoT telemetry dashboards, it depends on the sensor. A temperature feed that updates every second can drop stale readings happily, favoring DataChannel-style unreliable delivery. An alarm event must arrive exactly once, favoring WebSocket.
Architectural Diagrams
Architecture makes the difference concrete. The two diagrams below show the fundamental topology difference between the protocols.
Diagram 1: WebSocket Client-Server Flow
Every message passes through the server. That is the cost, and also the power, of this topology.
Diagram 2: WebRTC DataChannel Peer-to-Peer with Signaling
Notice that the signaling server and TURN infrastructure only participate in setup. Once the direct connection is established, data flows peer to peer without touching your servers.
Hybrid Approaches: Using Both Together
Most production real-time systems are not WebSocket or DataChannel. They are both, because the two protocols solve complementary halves of the problem.

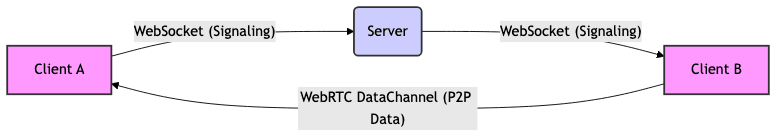

When to Combine WebSocket Signaling with DataChannel
WebRTC itself requires signaling to establish any peer connection, and WebSocket is the most common signaling transport. That naturally leads to a hybrid pattern: keep WebSocket as the control plane for session management, room membership, authentication, and chat, and use DataChannel as the data plane for high-frequency, latency-sensitive traffic.
This split gives you the best of both. The server sees and controls everything that must be reliable, while latency-critical data flows directly between peers. VideoSDK's architecture follows exactly this pattern, with a token-authenticated room layer managing participants while media and data flow through optimized real-time channels, as covered in the VideoSDK concept and architecture guide.
Practical Integration Tips
Treat session management as the WebSocket layer's job. Room membership, presence, and reconnection coordination belong on the reliable channel, so that when a DataChannel drops, both peers know the session state and can resume cleanly.
Plan a fallback strategy. If direct peer-to-peer connectivity fails behind a strict corporate firewall, your system should fall back to relaying through a TURN server or a server-side channel without the user noticing. Monitor both layers separately, because DataChannel failures often look like application bugs when they are really connectivity failures. The VideoSDK REST API provides room and participant management endpoints that make this orchestration straightforward from your backend.
Common Pitfalls and Mitigation Strategies
The same failure modes appear repeatedly in real-time deployments, and most of them are predictable enough to plan for.
Dealing with NAT and Firewall Issues
Peer-to-peer connectivity fails whenever a symmetric NAT or strict firewall blocks direct UDP paths between peers. The mitigation is TURN infrastructure: a relay server that forwards traffic when direct connection is impossible. Budget for it, because TURN bandwidth is the hidden cost of any peer-to-peer system, and a meaningful fraction of real-world users, often cited in the 10 to 20 percent range depending on audience, end up needing the relay.
Design your fallback so it is automatic. Attempt direct connection first, escalate to STUN-assisted connection, and only then relay through TURN, all without user intervention. WebSocket has no equivalent problem, which is a genuine operational advantage worth weighing against DataChannel's latency benefits.
Handling Packet Loss and Reconnection
For DataChannel, decide per message type what loss means. Continuous state like positions or sensor readings should be sent unreliably, with the receiver interpolating over gaps. Discrete events like a score change or a purchase should be sent reliably, or routed through the WebSocket control plane instead.
For reconnection, synchronize state on reconnect rather than replaying missed messages. A client that rejoin a session should request a current snapshot of state, not a replay of every update it missed. This pattern, snapshot on reconnect plus delta updates during the session, is the standard graceful degradation strategy in production real-time systems, and it works identically well over both protocols.
Definitions Glossary
WebSocket: A persistent, bidirectional communication channel over a single TCP connection, established through an HTTP upgrade handshake, providing reliable and ordered message delivery between client and server.
WebRTC DataChannel: A peer-to-peer data transport built on UDP with SCTP over DTLS, allowing configurable reliability and ordering per channel for low-latency direct communication.
Head-of-Line Blocking: The latency stall that occurs when a transport holds subsequent messages until a lost earlier message is retransmitted, characteristic of TCP-based transports like WebSocket.
Signaling Server: The intermediary that exchanges connection setup information, such as session descriptions and ICE candidates, between peers before a direct WebRTC connection is established.
TURN Server: A relay server that forwards WebRTC traffic when direct peer-to-peer connectivity is blocked by NATs or firewalls, at the cost of added latency and bandwidth.
SFU (Selective Forwarding Unit): A media server topology that receives streams from participants and forwards only the necessary streams to others, enabling group real-time sessions beyond what a full peer-to-peer mesh can support.
Key Takeaways
- WebSocket provides reliable, ordered, server-mediated messaging and is the right choice for chat, notifications, and any traffic your backend must see and persist.
- WebRTC DataChannel provides low-latency peer-to-peer delivery with configurable reliability, ideal for multiplayer games, media transport, and continuously refreshed state.
- TCP head-of-line blocking is the core latency difference: a single lost packet stalls a WebSocket stream while DataChannel traffic flows on.
- Peer-to-peer DataChannel cuts server bandwidth costs for small groups, but large groups still need an SFU, which is what room-based platforms like VideoSDK provide out of the box.
- Most production systems use both together: WebSocket as the reliable control plane and DataChannel as the low-latency data plane, with TURN fallback for blocked connections.
Conclusion
The WebSocket vs WebRTC DataChannel question has a clean answer once you stop comparing protocols and start comparing messages. If every message must arrive, in order, and through your server, choose WebSocket. If freshness beats completeness and data should flow directly between endpoints, choose DataChannel. If you need both, and most real-time products eventually do, build the hybrid: a WebSocket control plane paired with a real-time data plane.
If you are building the media-heavy end of this spectrum, video calling, interactive live streaming, or real-time data alongside audio and video, explore the VideoSDK quickstart to see how room-based real-time communication works in practice, or browse the code samples for your platform. You can start free at app.videosdk.live/login.
What are you building, a chat system, a game, or something in between? Drop a comment and tell me which transport you chose and why.
