Live streaming has become an integral part of our world. From watching esports tournaments and concerts to attending virtual classes and webinars, live streams offer a unique way to connect and share experiences in real-time.
But how exactly does this live video transmission work? This is where RTMP comes in, it is a communication protocol and plays an important role in transmission. This article dives into the inner workings of RTMP Out, exploring its technical details and the step-by-step process of how it enables smooth live streaming.
What is RTMP and RTMP Out?
In simple words, RTMP (Real-Time Messaging Protocol) is a specialized communication protocol designed for the low-latency transmission of live video data over the Internet. Unlike protocols like HTTP (yes, it is related to security as well), which focus on file transfer, RTMP prioritizes real-time communication, ensuring the uninterrupted delivery of live streams.

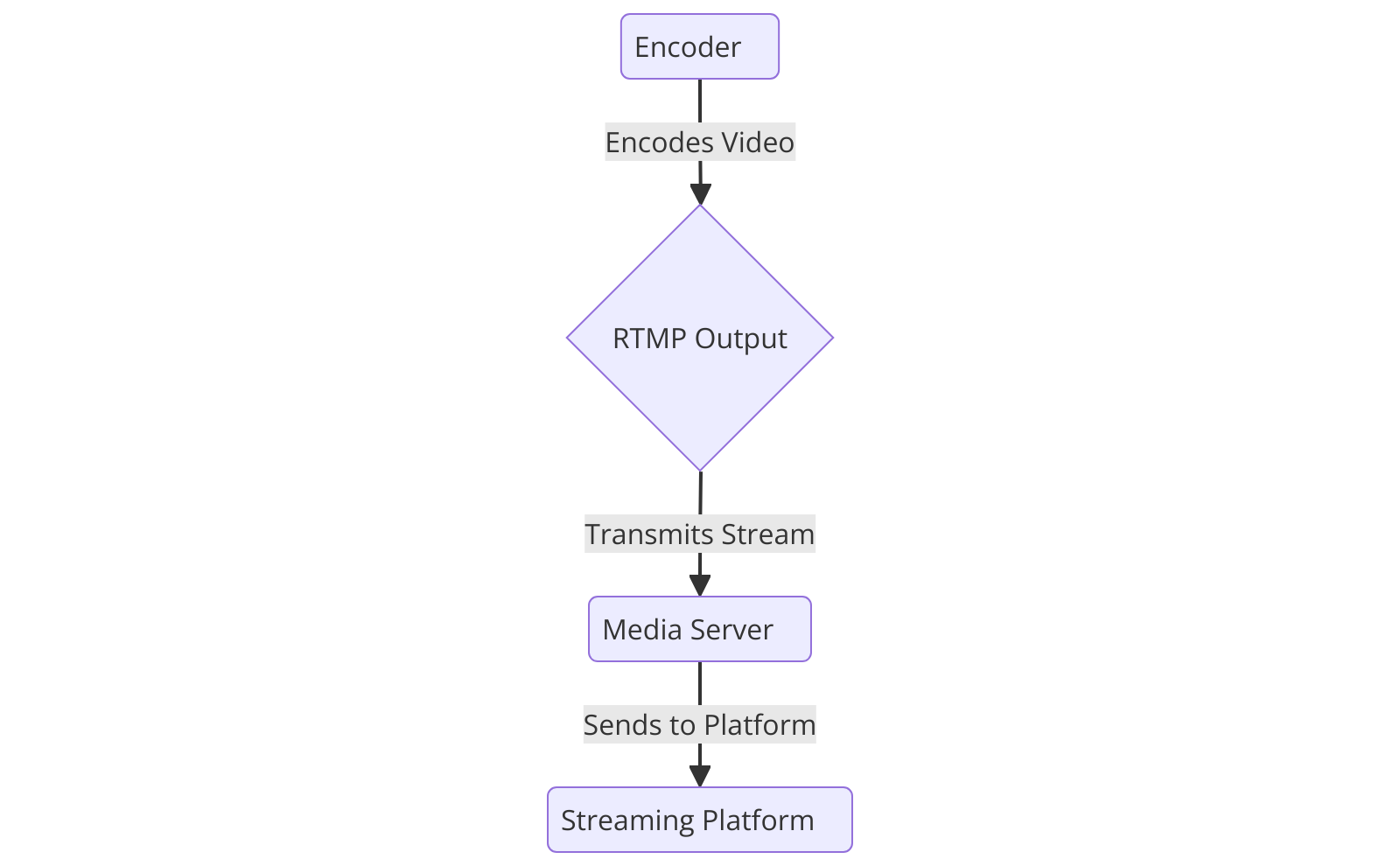

RTMP Output is the single-way process of transmitting a live video stream from an encoder to a streaming platform or media server using the Real-Time Messaging Protocol (RTMP).
Different Elements Used in RTMP Out
Encoder: An encoder is a (1) software or hardware application responsible for capturing video and audio from a source like a camera, microphone, screen capture card, etc; (2) compressing it into a streamable format, and (3) preparing it for transmission.
Streaming Platform: This is the online service that receives the encoded stream from the encoder, distributes it to viewers on various devices, and manages the playback experience. Popular examples include YouTube Live, Twitch, and Facebook Live.
RTMP Server: The streaming platform has servers specifically configured to receive incoming RTMP streams. These servers handle the data transfer and make the stream accessible to viewers.
How RTMP Out Works?
Here's a detailed analysis of the process involved in RTMP Out:
Stream Setup and Configuration:
The streamer chooses a streaming platform and sets up an account. The platform provides the streamer with an RTMP server URL and stream key. These act like unique identifiers that allow the platform to recognize and accept the incoming stream from the encoder.
The streamer opens its encoder software (OBS Studio, XSplit, vMix, etc.) and configures the streaming settings. Within the encoder settings, you'll typically find a dedicated section for "Streaming" or "Output."
RTMP and Connection Establishment:
The encoder initiates an RTMP with the streaming platform's RTMP server using the provided URL and stream key. This association establishes a persistent connection between the encoder and the server, ensuring a continuous flow of data for the live stream.
Data Chunking and Stream Packaging:
To ensure efficient data transmission over the internet, the encoder breaks down the compressed video and audio data into smaller manageable units called chunks or packets.
Each chunk is typically a few hundred bytes in size and contains information about the data type (audio/video), sequence number, and timestamp for proper reassembly at the receiving end. The encoder then packages these data chunks into RTMP messages according to the RTMP protocol specifications.
Sending the Stream:
The encoder transmits the RTMP messages containing the video and audio data scraps over the established connection to the streaming platform's RTMP server. RTMP uses TCP (Transmission Control Protocol) for reliable data transfer.
TCP ensures that the data packets arrive in the correct order and without errors. In case of any errors or missing packets, TCP requests retransmission.
Receives and Processes the Stream:
RTMP server receives the RTMP messages sent by the encoder. The server unpacks the messages, reassembles the data chunks based on their sequence numbers and timestamps, and buffers the received data.
Stream Distribution and Playback:
The streaming platform processes the reassembled video and audio data and prepares it for delivery to viewers. This might involve further transcoding the stream into different bitrates and resolutions to cater to viewers with varying internet connection speeds and device capabilities.
The platform then distributes the prepared stream to viewers who have connected to the stream on their devices (computers, phones, tablets). Viewers typically access the stream through the platform's website or dedicated apps.
The platform employs various protocols like HLS (HTTP Live Streaming) for this delivery, allowing viewers to experience smooth playback even with fluctuating internet connections.
Monitoring and Stream Management:
Monitoring the health of their stream within the encoder software with tools like bitrate meters and frame rate displays provides valuable insights into the stream's performance, including options to control who has access, schedule the stream, and interact with viewers in real time through chat features.
Benefits of Using RTMP Out
Low Latency: A key benefit of RTMP is its ability to deliver low-latency streams. This means the delay between the action happening in real-time and viewers seeing it on their screens is minimal. This is crucial for interactive live experiences like gaming streams and live auctions where viewers need to react quickly.
Reliability: RTMP prioritizes reliable data transmission. By employing error correction and congestion control mechanisms, RTMP ensures that the video stream reaches viewers with minimal interruptions or glitches. This stability is essential for professional live-streaming scenarios.
Compatibility: As an open standard, RTMP is widely supported by a vast range of encoder software and streaming platforms. This flexibility allows streamers to choose the tools and services that best suit their needs without worrying about compatibility issues.
Security: While not inherently secure, RTMP can be configured with authentication and encryption to protect live streams from unauthorized access. This is important for sensitive content or private events.
Alternatives to RTMP Out
RTMP remains a reliable and popular choice for live streaming, but newer protocols have emerged that offer additional functionalities:
HLS (HTTP Live Streaming):
HLS is gaining traction due to its ability to deliver adaptive bitrate streams. This means the streaming platform can adjust the video quality based on the viewer's internet connection speed, ensuring smooth playback even for viewers with limited bandwidth. HLS also offers playlist-based delivery, allowing viewers to join the stream mid-broadcast without missing anything.
RIST (Reliable Internet Streaming Transport):
This newer protocol offers even lower latency than RTMP and is gaining popularity for real-time broadcasting applications like live sports and news events.
Understanding RTMP Out allows you to appreciate the technical foundation behind live streaming. While newer protocols are emerging, RTMP remains a robust and widely supported solution for streaming live video content.
Its low latency, reliability, and compatibility continue to make it a valuable tool for streamers across various platforms. As technology evolves, RTMP will likely coexist with newer options, offering broadcasters the flexibility to choose the protocol that best suits their specific needs and streaming goals.
